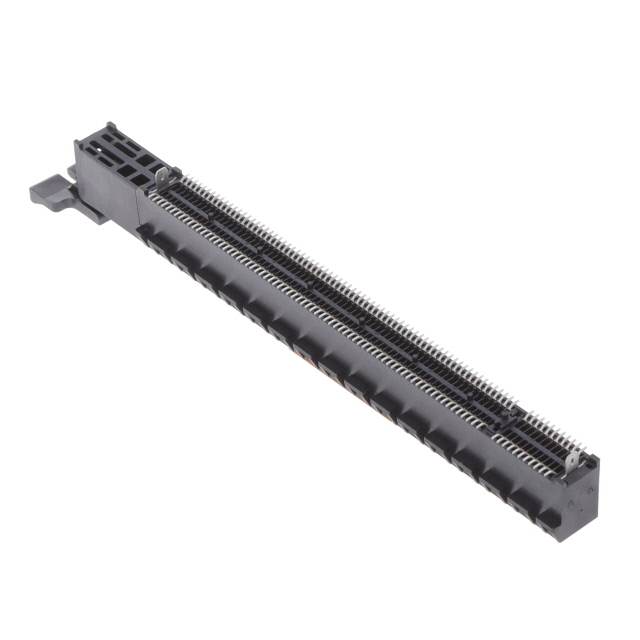

10147430-113T0LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 0.039 GOLD. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 10147430-113T0LF
- Description：CONN PCI EXP FMALE 0.039 GOLD
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：-
- Card Thickness：-
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Latches, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：-
- Contact Type：-
- Color：-
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 10147430-113T0LF
Edgeboard Connectors Overview
The 10147430-113T0LF is a high-speed edgeboard connector manufactured by Amphenol ICC (FCI). It is designed for PCI Express applications, featuring a female contact type with gold plating. The connector utilizes a surface mount termination method and operates with a pitch of 0.039 inches (1.00mm). It incorporates a locked latch mechanism to ensure secure connection stability during operation.
Edgeboard Connectors Feature Summary
- Incorporates a locked latch mechanism for enhanced mechanical security
- Features gold-plated contacts to support high-speed signal integrity
- Designed specifically for PCI Express edgeboard interface applications
Edgeboard Connectors Applications
- PCI Express edgeboard connections
- High-speed data communication systems
- Industrial equipment requiring robust interconnects
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm exact pin count and configuration. Ensure compatibility with mating card specifications regarding height and latch engagement. Confirm RoHS compliance status through current manufacturer certificates before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a reliable, high-density interface is required for PCI Express implementations. The locked latch feature provides superior retention compared to standard connectors. Evaluate thermal management requirements as the device supports high-speed data transmission protocols essential for modern computing architectures.
Edgeboard Connectors Part Context
This part belongs to the Amphenol ICC (FCI) portfolio of high-performance interconnect solutions. It addresses the demand for reliable connections in demanding electronic environments. The design emphasizes signal integrity and mechanical durability for critical system interfaces.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing board layouts if considering alternative suppliers.
