10151422-0222120LF

Edgeboard Connectors Overview

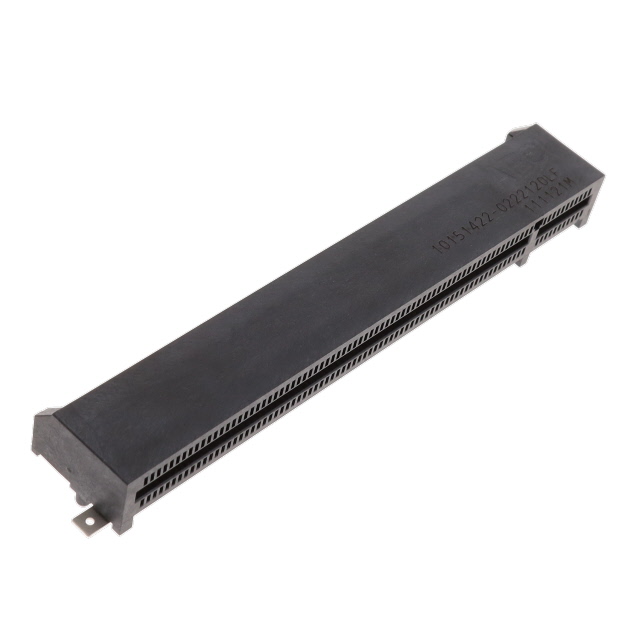

The Amphenol ICC (FCI) 10151422-0222120LF is a PCI Express female edgeboard connector featuring 164 positions and a 0.039-inch (1.00mm) pitch. It utilizes gold contact finish with a thickness of 30.0µin (0.76µm). The housing is black, constructed from liquid crystal polymer (LCP) reinforced with glass fiber. Designed for card thicknesses up to 0.063 inches (1.60mm), it operates within a temperature range of -55°C to 105°C.

Edgeboard Connectors Feature Summary

• Supports high-speed PCI Express signal transmission
• Dual-row configuration for dense board integration
• Robust LCP insulation material for thermal stability

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-performance computing modules
• Telecommunications infrastructure boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required contact finishes and housing materials. Confirm that the selected variant matches the intended PCB mounting style and card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring reliable PCI Express connectivity with a 1.00mm pitch. Ensure the host PCB layout accommodates the dual-row footprint and verify that the operating environment remains within the specified -55°C to 105°C range for optimal performance.

Edgeboard Connectors Part Context

This part belongs to the Amphenol ICC (FCI) edgeboard connector portfolio, which provides interconnect solutions for demanding electronic applications. The series supports various interface standards, offering engineers flexible options for signal integrity and power delivery in compact form factors.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical and electrical compatibility if considering alternative suppliers or updated revisions from the same manufacturer.
