10152821-103Q000LF

Edgeboard Connectors Overview

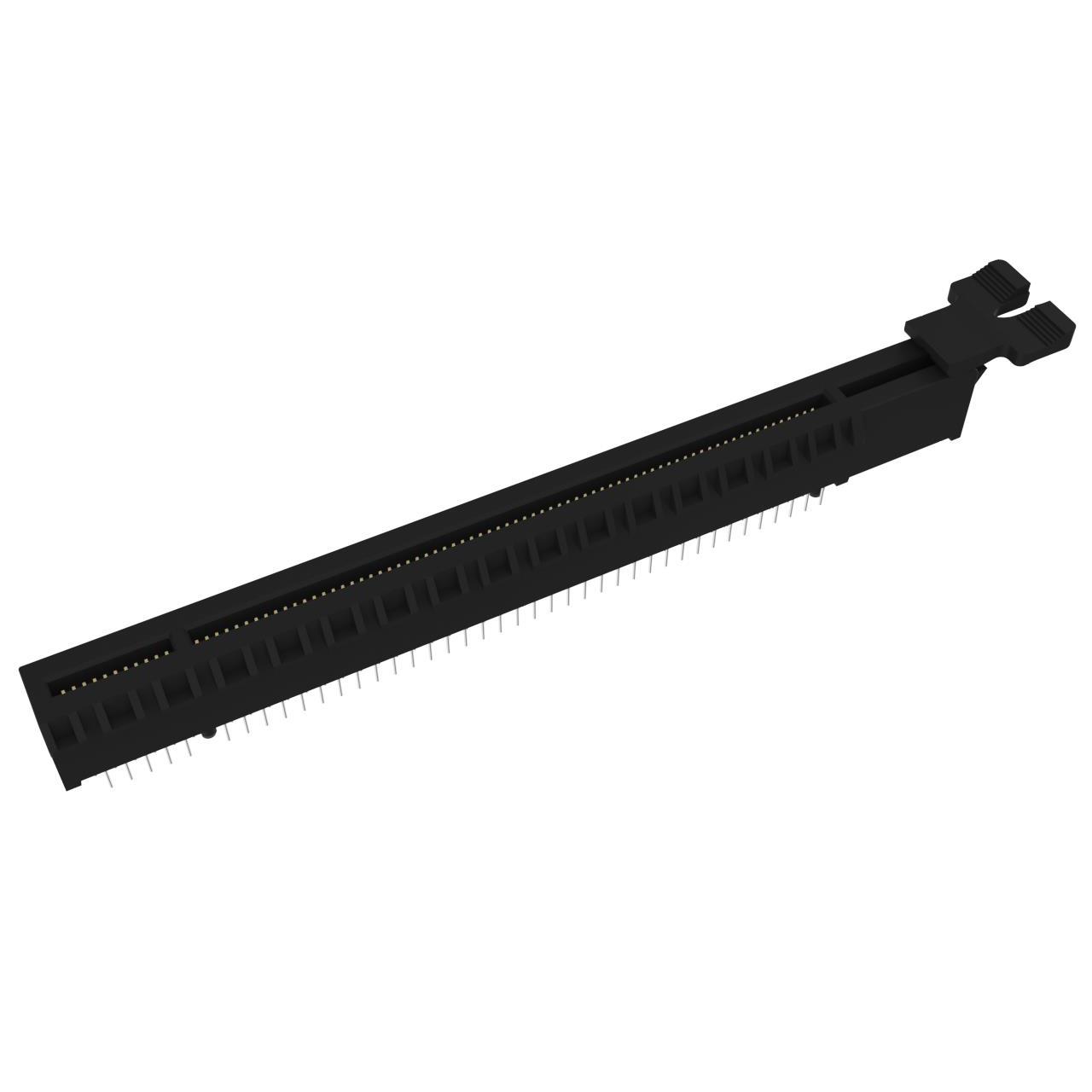

The Amphenol ICC (FCI) part number 10152821-103Q000LF is a PCI Express 4.0 high-speed backplane assembly designed for robust signal integrity in demanding environments. This component features an 82-position configuration arranged in two rows, facilitating high-density interconnect solutions. The contacts are finished with a thickness of 30.0 µin (0.76 µm) to ensure reliable conductivity and corrosion resistance over extended operational lifespans. As a Through-Hole (TH) assembly, it provides secure mechanical anchoring on printed circuit boards. The product is compliant with RoHS standards, indicating adherence to restricted substance regulations for environmental safety.

Edgeboard Connectors Feature Summary

• Supports PCI Express 4.0 data transmission rates for high-bandwidth applications
• Features dual-row 82-position layout for dense board integration
• Utilizes through-hole mounting technology for enhanced mechanical stability
• Includes gold contact finishing for superior electrical performance

Edgeboard Connectors Applications

• High-speed server backplanes
• Telecommunications infrastructure equipment
• Industrial control systems requiring PCIe 4.0 interfaces
• Data center networking hardware

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging format directly with the manufacturer or authorized distributors before ordering. Ensure that the procurement documentation explicitly confirms RoHS compliance status. Cross-reference the full part number including the suffix to match exact pin counts and row configurations. Request material test reports if required for your specific industry quality standards. Confirm lead times as they may vary based on production schedules.

Edgeboard Connectors Selection Notes

Select this component when designing systems that require native support for PCI Express 4.0 signaling protocols. The 82-position count is suitable for x16 or similar high-lane configurations requiring dual-row access. Consider the through-hole mounting requirement during PCB layout planning, as it differs from surface-mount alternatives. Evaluate the 30.0 µin contact finish against environmental exposure conditions to determine long-term reliability needs. Ensure mating connectors align with the specified row pitch and housing dimensions.

Edgeboard Connectors Part Context

This assembly belongs to Amphenol ICC's high-speed IO product line, specifically engineered for next-generation computing architectures. It serves as a critical interface between system processors and peripheral expansion slots. The design focuses on minimizing signal loss and crosstalk at frequencies associated with PCIe Gen 4. It complements other backplane components within the FCI ecosystem to create complete interconnect solutions.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the 82-position count, PCIe 4.0 specification, and through-hole mounting style exactly. Verify compatibility with existing mating headers before considering alternative suppliers.

Edgeboard Connectors FAQ

What is the contact finishing thickness for this connector?

The contact finishing thickness is 30.0 µin (0.76 µm).

How many positions does this assembly have?

It has 82 positions arranged in two rows.
