10154478-067RCALF

Edgeboard Connectors Overview

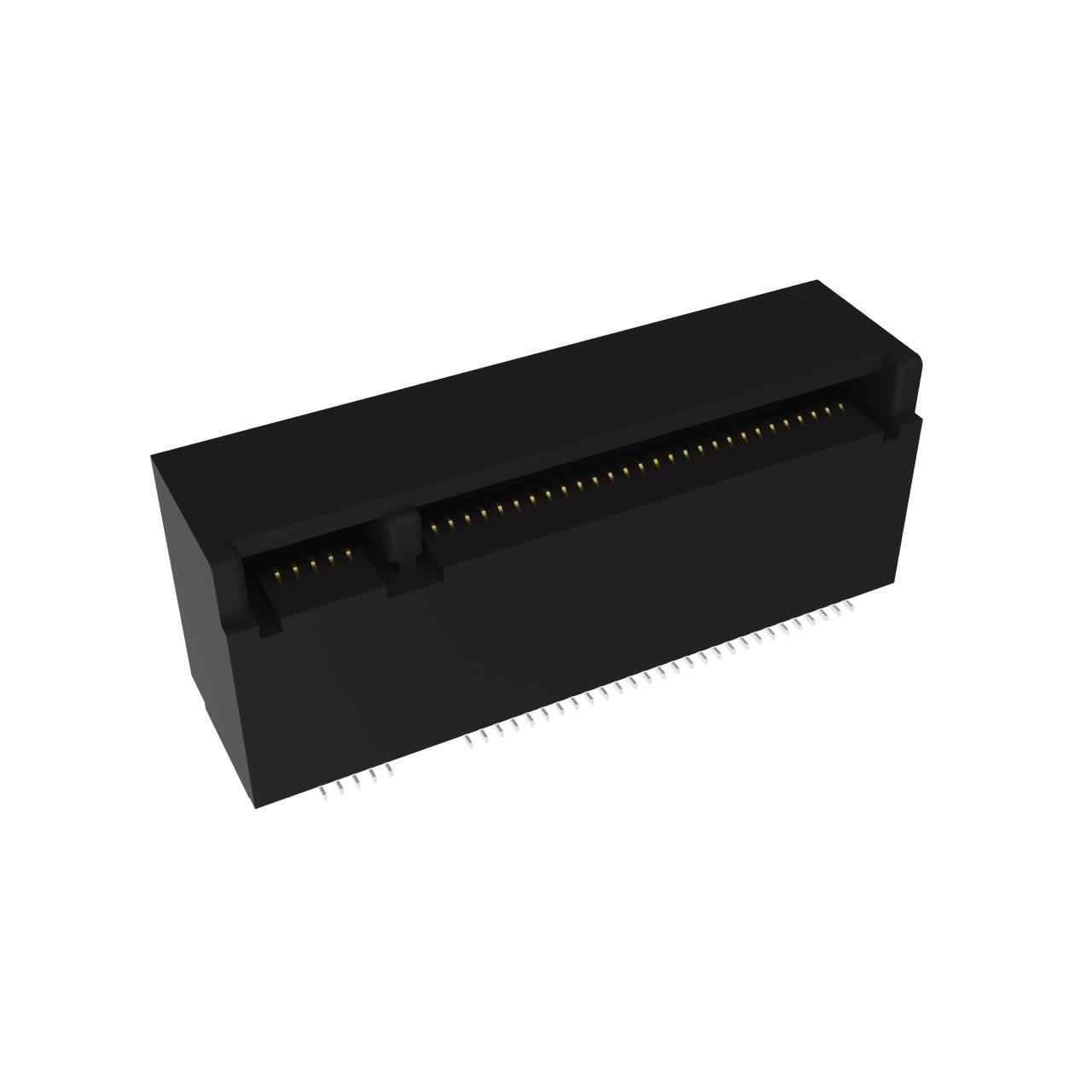

The Amphenol ICC (FCI) part number 10154478-067RCALF is a PCIe M.2 connector designed for the standard M.2 form factor. It features a pitch of 0.5mm and a height of 8.5mm. The connector utilizes Key A configuration with 15µin gold plating on contacts. It is engineered for applications where card changes are infrequent, typically supporting less than 100 mating cycles over its operational life.

Edgeboard Connectors Feature Summary

• Designed for standard M.2 form factor applications
• Key A configuration for specific slot compatibility
• Engineered for low mating cycle environments

Edgeboard Connectors Applications

• Standard M.2 SSD installations
• Low-maintenance industrial computing systems
• Embedded storage solutions requiring fixed connectivity

Edgeboard Connectors Procurement Notes

Verify the exact mating cycle rating against current official datasheets before deployment in high-cycling environments. Confirm that the Key A configuration aligns with the target M.2 device specifications to ensure mechanical and electrical compatibility. Check for any recent product change notifications from Amphenol ICC regarding material or process updates.

Edgeboard Connectors Selection Notes

Select this component only when the application requires a standard M.2 interface with limited insertion and extraction frequency. Ensure the system design accommodates the 0.5mm pitch and 8.5mm height constraints. Validate that the Key A locking mechanism meets the security and retention requirements of the final assembly without requiring higher-cycle rated alternatives.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol ICC (FCI) portfolio of high-speed interconnect solutions. It supports data transmission standards associated with M.2 interfaces. The manufacturer provides specialized connectors for consumer electronics, industrial automation, and telecommunications sectors, focusing on signal integrity and compact form factors.

Edgeboard Connectors Replacement Considerations

Consult official substitution guides for compatible M.2 connectors with similar Key A configurations and height profiles. Verify that alternative parts maintain the same 0.5mm pitch and contact plating specifications to ensure interchangeability without redesigning the host board.
