10163106-A41410HLF

Edgeboard Connectors Overview

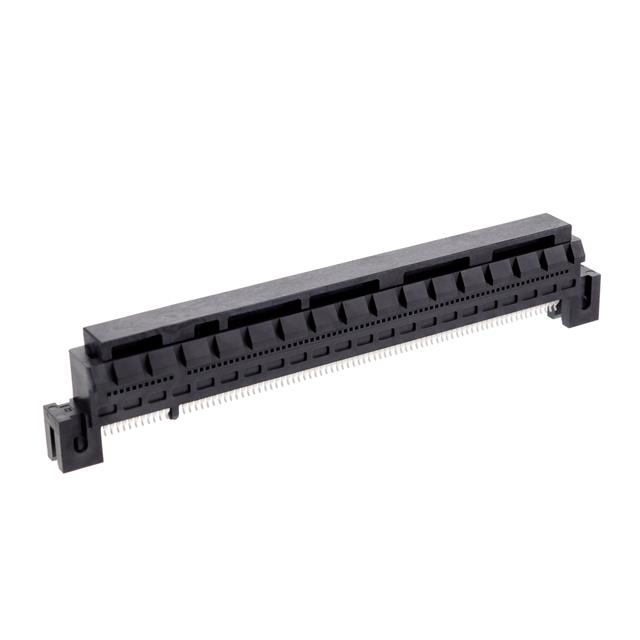

The Amphenol ICC (FCI) 10163106-A41410HLF is a PCI Express 5.0 straddle mount board-to-board mezzanine connector designed for high-speed data transmission. It features 164 positions with a 1.57 mm pitch, supporting x16 configurations. The connector utilizes gold-plated contacts to ensure signal integrity and reliability in demanding environments.

Edgeboard Connectors Feature Summary

• Supports PCI Express 5.0 standard for high-bandwidth applications
• Straddle mount design for secure board-to-board connection
• Gold-plated contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• High-performance computing systems
• Telecommunications infrastructure
• Data center interconnects

Edgeboard Connectors Procurement Notes

Verify the specific revision level and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Ensure that the ordering suffix matches the required packaging and termination specifications. Confirm compatibility with mating connectors and PCB footprint requirements to avoid integration issues during assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density, high-speed mezzanine interface is required for PCIe 5.0 applications. Consider the straddle mount form factor for mechanical stability and the 1.57 mm pitch for space-constrained designs. Evaluate thermal management needs and signal integrity requirements against the connector's rated performance capabilities.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI PCI Express connector family, which provides solutions for next-generation computing architectures. It is engineered to meet the stringent electrical and mechanical standards of modern server and storage platforms, ensuring reliable data transfer rates.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options through official Amphenol FCI channels or authorized distributor databases to ensure functional and dimensional compatibility.
