123A-58M01

Edgeboard Connectors Overview

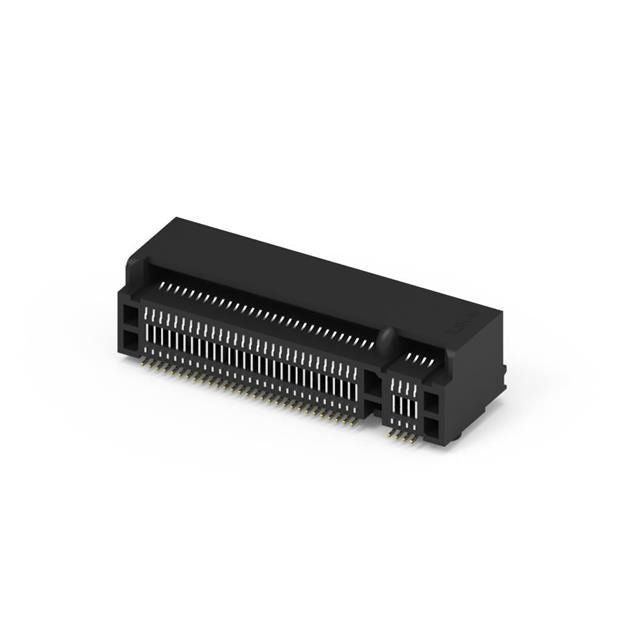

The ATTEND Technology 123A-58M01 is a surface-mount M.2 (NGFF) socket connector featuring a 67-position interface with an H=5.8mm stack height. It supports PCIe, SATA, and USB protocols via an M Key configuration. The component utilizes gold-plated copper alloy contacts and offers right-angle mounting with board guide and solder retention features.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission for PCIe, SATA, and USB applications
• Designed for compact embedded systems with a 5.8mm profile
• Includes mechanical board guide and solder retention for secure installation

Edgeboard Connectors Applications

• Compact embedded computing modules
• Wireless communication cards
• Data storage expansion interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix and package type against official manufacturer documentation to ensure compatibility with your PCB layout. Confirm that the M Key variant matches your host system requirements. Check for RoHS compliance status in the latest datasheet before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this model when a low-profile M.2 solution is required for space-constrained designs. Ensure the host board accommodates the 5.8mm height constraint. Verify signal integrity requirements for PCIe or USB speeds are met by the connector's impedance characteristics.

Edgeboard Connectors Part Context

This part belongs to the 123A series of M.2 connectors from ATTEND Technology. The series includes various stack heights and keying options to support different form factors and interface standards within the NGFF specification.

Edgeboard Connectors Replacement Considerations

Check for other 123A series variants with different stack heights if space allows. Verify pinout compatibility with existing designs before substituting.
