145154-1

Edgeboard Connectors Overview

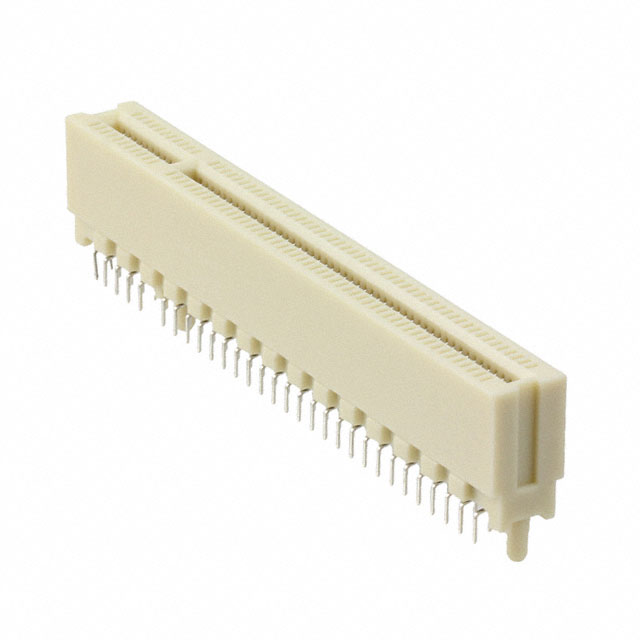

The TE Connectivity AMP Connectors model 145154-1 is a standard card edge connector designed for PCI-type circuit boards. It features a dual-row configuration with 120 total positions, arranged as 60 contacts per row (11 positions per bay across multiple bays). The connector utilizes a through-hole mounting style for secure PCB attachment. It is engineered to accommodate a standard card thickness of 0.062 inches (1.57 mm). The housing material is natural-colored plastic, providing structural integrity and insulation for high-density interconnect applications.

Edgeboard Connectors Feature Summary

• Dual-row architecture supporting 120 contact positions for high-density signal routing
• Through-hole termination method ensuring robust mechanical fixation to the printed circuit board
• Compatible with standard 0.062-inch thick PCI-type card edge substrates

Edgeboard Connectors Applications

• High-density backplane interconnections in industrial control systems
• Signal routing within modular computing hardware architectures
• Interface connections for specialized telecommunications equipment modules

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official TE Connectivity documentation. Confirm that the specific revision matches the required dual-row, 120-position specification. Ensure compliance with project requirements regarding the natural housing color and through-hole termination type. Check for any end-of-life notices or alternative sourcing recommendations if availability is constrained.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 120-position card edge interface is required for PCI-form-factor boards. Ensure the design accommodates the 0.062-inch card thickness constraint. Verify that the through-hole mounting style aligns with the manufacturing capabilities of the target assembly line. Consider environmental factors and material compatibility if operating in non-standard thermal conditions.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specifically categorized under standard card edge connectors. It serves as a critical interconnect solution for applications requiring reliable electrical pathways between daughter cards and motherboards. The product represents a legacy design point within the broader family of board-to-board connection technologies offered by the manufacturer.
