145251-2

Edgeboard Connectors Overview

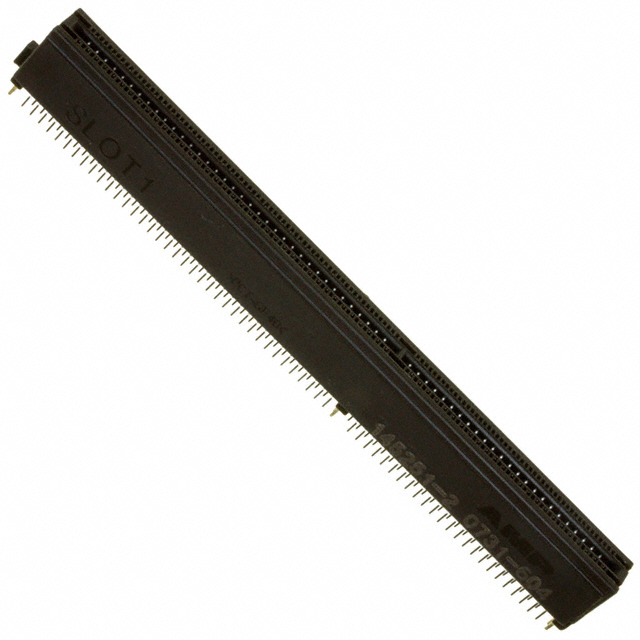

The TE Connectivity AMP Connectors part number 145251-2 is a standard card edge connector designed for dual-sided contact applications. It features a 1mm pitch and accommodates 242 positions arranged in two rows. The component utilizes through-hole mounting technology to secure the connector to the printed circuit board. This specific model is classified as obsolete within the manufacturer's current lifecycle status, indicating it is no longer actively produced or recommended for new designs.

Edgeboard Connectors Feature Summary

• Dual-sided contact configuration for reliable signal transmission
• Standard 1mm pitch spacing between contact rows
• Through-hole termination method for PCB integration

Edgeboard Connectors Applications

• High-density data interface connections
• Industrial control system backplanes
• Telecommunications equipment interconnects

Edgeboard Connectors Procurement Notes

Verify availability carefully as this component is listed with an obsolete lifecycle status. Sourcing may be limited to existing stock or third-party distributors rather than direct manufacturer fulfillment. Confirm exact physical dimensions and pinout compatibility before procurement to ensure fitment in legacy systems requiring replacement parts.

Edgeboard Connectors Selection Notes

Select this connector only for retrofitting existing designs that specifically require a 1mm pitch and 242-position capacity. Evaluate alternative modern components if designing new hardware due to the obsolete status. Ensure mating card thickness specifications align with the connector's mechanical requirements to prevent connection failure.

Edgeboard Connectors Part Context

This component belongs to the AMP series of card edge connectors manufactured by TE Connectivity. It represents a high-pin-count solution intended for robust electrical connections in demanding environments. The design focuses on maintaining signal integrity across a large number of channels within a compact form factor suitable for dense electronic assemblies.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the obsolete status, engineers must identify equivalent components based on matching pitch, position count, and mounting style from other manufacturers or newer TE Connectivity product lines.
