145263-1

Edgeboard Connectors Overview

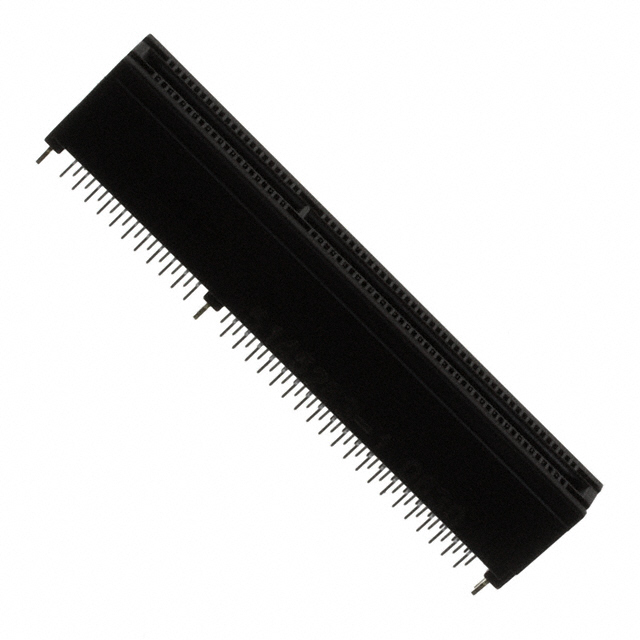

The TE Connectivity AMP Connectors part number 145263-1 is a standard card edge connector designed for board-to-board applications. It features 124 positions with a centerline pitch of 1 mm (0.039 inches). The connector utilizes a male contact configuration to interface with corresponding female card edge connectors. It supports a maximum contact current rating, ensuring reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Supports high-density board-to-board interconnections through a 124-position layout.
• Utilizes a precise 1 mm centerline pitch for compact circuit board integration.
• Features male contacts designed for secure mating with standard card edge interfaces.

Edgeboard Connectors Applications

• High-density electronic assembly interconnects
• Industrial control system backplanes
• Telecommunications equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement to ensure compatibility with target PCB footprint and mating connector specifications. Confirm that the 1 mm pitch and 124-position count align with design requirements. Check for RoHS compliance status and packaging details such as tray quantities to match production handling needs.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, low-profile board-to-board connection is required. The 1 mm pitch allows for dense component placement on limited board space. Ensure the mating connector provides compatible female contacts and that the assembly environment does not exceed the rated current capacity for all 124 positions simultaneously.

Edgeboard Connectors Part Context

This component belongs to the Standard Card Edge Connectors subcategory within the TE Connectivity AMP portfolio. It is engineered for robust electrical performance in demanding environments. The series is characterized by its precision manufacturing and reliability in maintaining stable connections across various industrial and commercial electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain the 124 position count and 1 mm pitch specification. Verify mechanical dimensions and contact material compatibility before replacing. Generic equivalents may lack the specific locking or alignment features of the original AMP design.
