1510462150

Edgeboard Connectors Overview

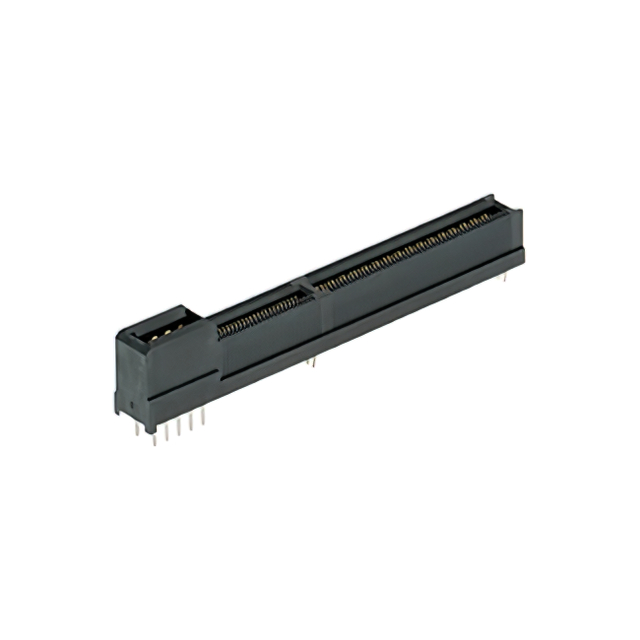

The Molex 1510462150 is an EdgeLine 25 ESP vertical edge connector assembly designed for high-speed data transmission. It features a dual-row configuration with a total of 152 positions, comprising 150 signal contacts and 2 dedicated power contacts. The connector utilizes a 0.80mm (0.031 inch) pitch and supports a card thickness of 2.36mm (0.093 inch). Constructed with liquid crystal polymer (LCP) insulation reinforced with glass fiber, it ensures stability in demanding environments. The gold-plated copper alloy terminals provide reliable connectivity, while the surface mount and through-hole installation options offer flexibility. The component operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-row design supporting 150 signal and 2 power positions for integrated power and data transmission
• Gold-plated terminal surfaces ensure low contact resistance and corrosion resistance
• Liquid crystal polymer insulation material provides thermal stability and mechanical strength
• Vertical mounting configuration facilitates compact board-to-board interconnections

Edgeboard Connectors Applications

• High-speed data communication equipment requiring 25 Gbps performance
• Industrial control systems utilizing edge board connections
• Telecommunications infrastructure components
• Computing hardware with dual-row edge connector requirements

Edgeboard Connectors Procurement Notes

This product has been officially declared End-of-Life (EOL) by the manufacturer. Production ceased on July 12, 2025, with final shipments expected by August 29, 2026. Procurement should focus on verifying remaining stock availability from authorized distributors or secondary market sources. Buyers must confirm the authenticity of the parts and check for any specific handling requirements due to the discontinued status. Integration into new designs is not recommended without thorough supply chain risk assessment.

Edgeboard Connectors Selection Notes

Engineers selecting this component should prioritize its specific 0.80mm pitch and 152-position capacity. The dual-row arrangement with dedicated power pins distinguishes it from standard signal-only connectors. Compatibility requires matching PCB edge card specifications to the 2.36mm thickness constraint. Due to the EOL status, alternative solutions with similar electrical characteristics and form factors should be evaluated for long-term production viability. Verify that the LCP insulation rating meets the operational temperature requirements of the target application.

Edgeboard Connectors Part Context

Part of the Molex EdgeLine 151046 series, this connector is engineered for high-density interconnects. The series is characterized by its ability to support high-speed signals up to 25 Gbps. The 1510462150 variant specifically addresses applications needing both robust power delivery and extensive signal lines in a vertical profile. Its construction adheres to RoHS standards, ensuring compliance with environmental regulations for electronic assemblies.

Edgeboard Connectors Replacement Considerations

As this part is discontinued, direct substitutes are limited. Engineers should consult Molex for current series replacements or evaluate third-party connectors with identical 0.80mm pitch, 152-position count, and dual-row power/signal configuration. Mechanical footprint verification is critical when considering alternatives.
