Product Detailed Parameters
- Description：XTAL OSC XO 200MHZ LVDS SMD
- Series：1532D6
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：200 MHz
- Function：Enable/Disable
- Output：LVDS
- Voltage - Supply：1.8V
- Frequency Stability：±20ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：100mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max)：0.043" (1.10mm)
- Supplier Device Package：-
Download product information
Overview

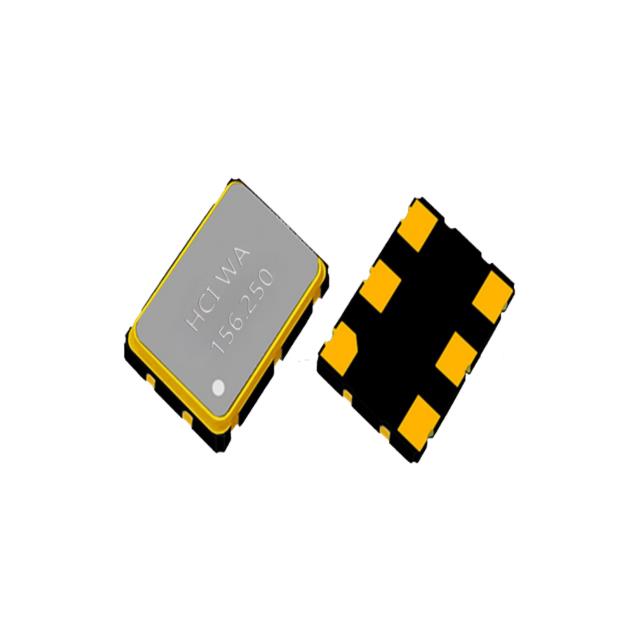

The 1532D6-200000G18DTSTK is a 200 MHz crystal oscillator (XO) manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It utilizes LVDS output technology and operates at a supply voltage of 1.8V. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, no lead package, designed for surface-mount applications requiring high-frequency stability.
Feature Summary
- LVDS output interface for high-speed signal integrity
- Integrated enable/disable control functionality
- Compact 6-SMD surface-mount package design
Applications
- Consumer electronics systems
- Automotive electronic modules
- Industrial equipment timing circuits
Procurement Notes
Verify the complete part number including suffixes to ensure correct voltage and package specifications. Confirm manufacturer authenticity through authorized channels. Request datasheets for electrical parameter validation prior to integration. Ensure compatibility with system power rails and logic levels.
Selection Notes
Select this component for applications requiring 200 MHz clock signals with LVDS outputs. The 1.8V operating voltage suits low-power digital systems. Consider the 6-SMD footprint for space-constrained PCB layouts. Validate temperature stability requirements against official specifications.
Part Context
Suzhou Hangjing Elec&Tech Co., Ltd. specializes in quartz frequency controlling units. This oscillator belongs to their standard XO series, targeting industries such as consumer electronics, automotive, and industrial sectors. The company focuses on R&D and production of quartz frequency control components.
Replacement Considerations
Cross-reference with CO32D6-200.000-33GDTSTK for similar frequency but different voltage. Verify pinout and voltage compatibility before substitution. No direct public substitute confirmed.
