1532H-14.7456G33DTSK

Overview

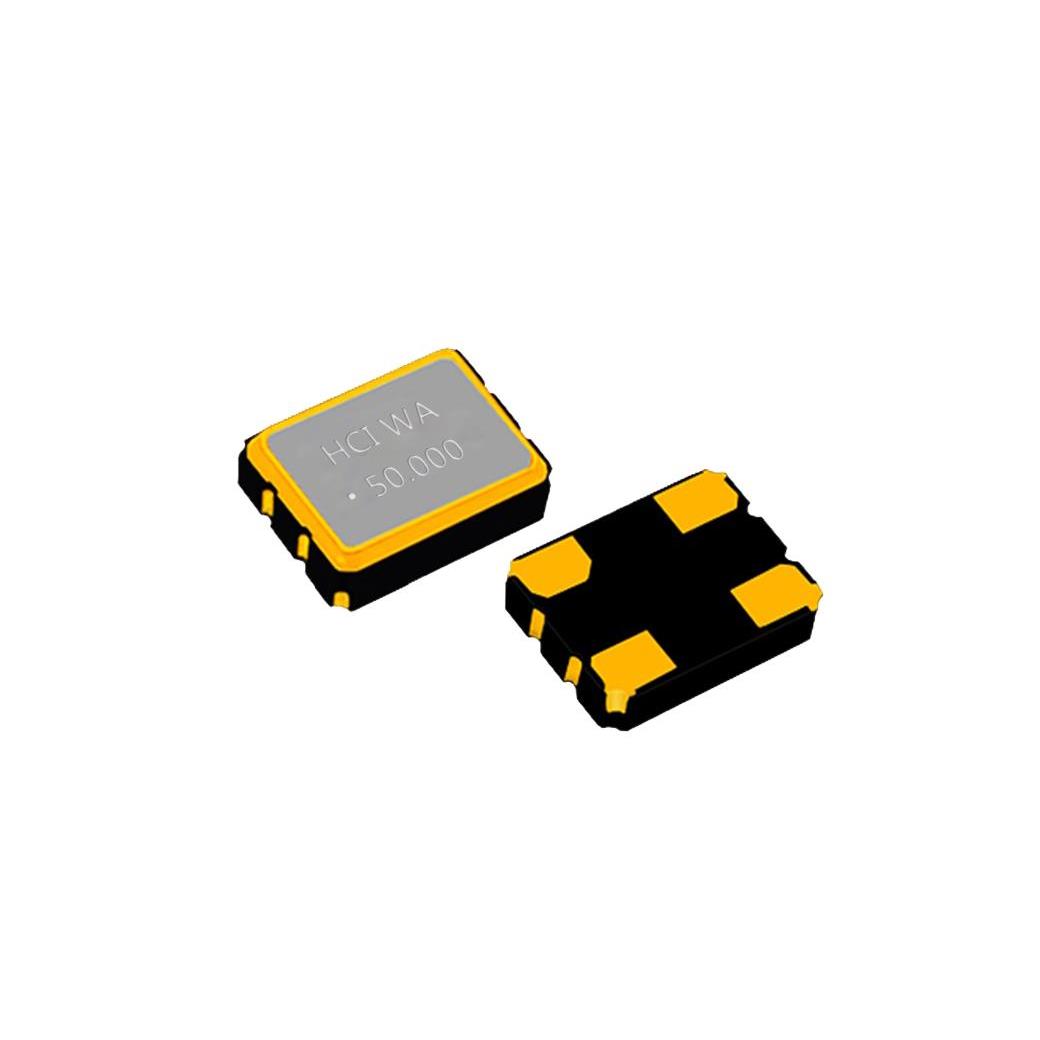

The 1532H-14.7456G33DTSK is a standard crystal oscillator (XO) manufactured by Suzhou Hangjing Elec & Tech Co., Ltd. It operates at a fixed frequency of 14.7456 MHz and utilizes an HCMOS output logic level. The device is designed for a supply voltage of 3.3V and includes enable/disable control functionality. It is housed in a compact 4-SMD, no lead package configuration, suitable for surface-mount assembly on printed circuit boards.

Feature Summary

• HCMOS output interface
• Enable/disable control capability
• Standard XO type

Applications

• Signal processing components
• In-vehicle systems
• GPS modules

Procurement Notes

Verify the manufacturer designation as Suzhou Hangjing Elec & Tech Co., Ltd. Confirm the specific part number 1532H-14.7456G33DTSK matches the required 14.7456 MHz frequency and 3.3V HCMOS specifications. Ensure the package type corresponds to the 4-SMD, no lead form factor before finalizing procurement orders.

Selection Notes

Select this component when a precise 14.7456 MHz clock signal is required with HCMOS compatibility. The integrated enable/disable feature allows for power management flexibility. Verify that the 3.3V operating voltage aligns with the target system's power rails and that the 4-SMD footprint fits the available PCB space constraints.

Part Context

This oscillator belongs to the quartz frequency control component family produced by Suzhou Hangjing Elec & Tech Co., Ltd. Founded in 2014, the company specializes in the research, development, and production of such units. This specific model represents their standard XO offering designed for integration into various electronic devices requiring stable timing references.

Replacement Considerations

The 1532H-14.7456KWVDTSK is a related variant within the same product line. However, it supports a wider voltage range of 1.8V to 3.3V compared to the fixed 3.3V requirement of the G33DTSK model. Substitution requires verification of voltage compatibility and interface matching.
