1553D-156.250G18DTSTK

Overview

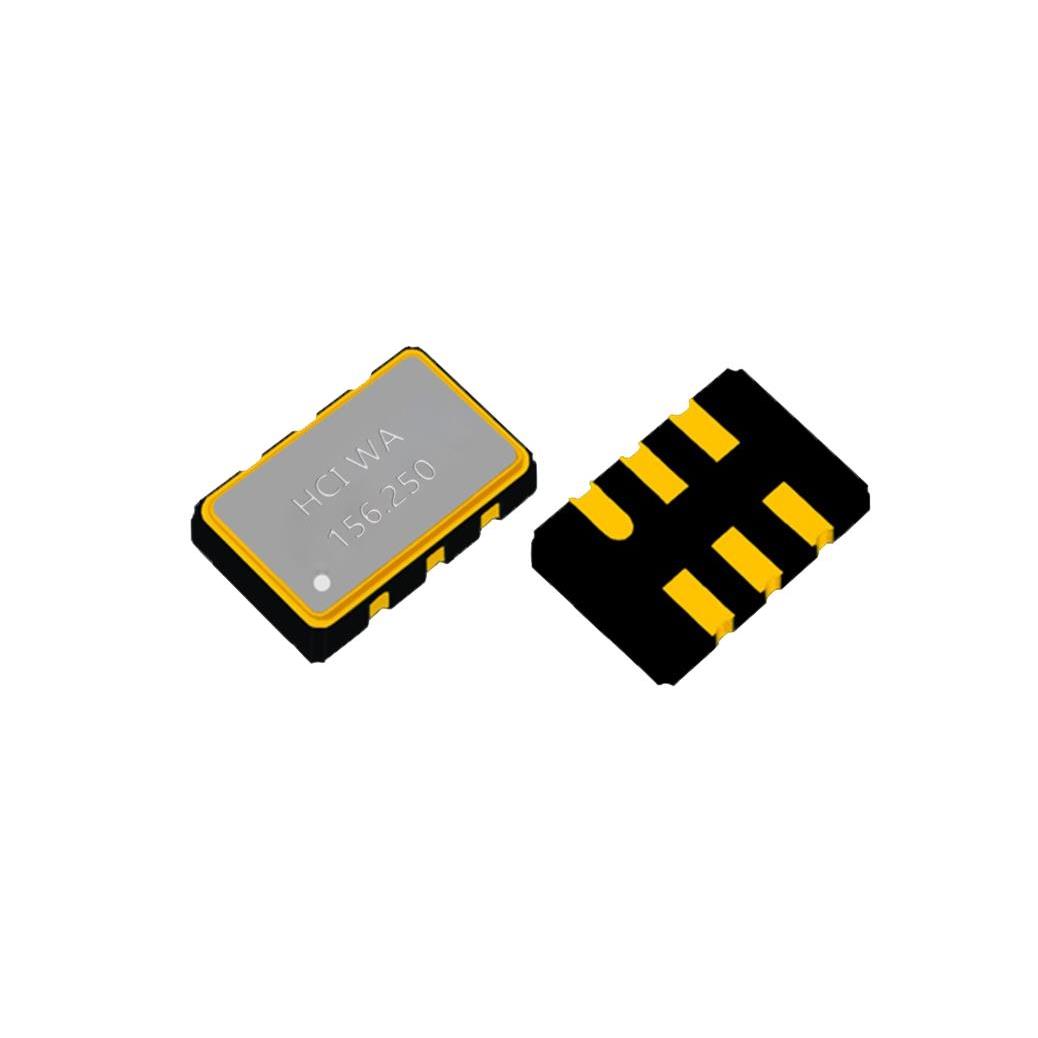

The 1553D-156.250G18DTSTK is a standard LVDS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 156.25 MHz with a supply voltage of 1.8V and features enable/disable functionality. The component utilizes a 6-SMD, No Lead surface-mount package measuring 0.197 inches in length. It provides a frequency stability of ±30ppm and functions within an operating temperature range of -40°C to 85°C.

Feature Summary

• Delivers low-voltage differential signaling (LVDS) output for high-speed data transmission applications.
• Incorporates enable and disable control capabilities for power management optimization.
• Designed for compact surface-mount integration using a leadless SMD package.

Applications

• High-speed serial communication interfaces
• Data center networking equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific manufacturer part number against official Suzhou Hangjing documentation to ensure authenticity. Confirm that the 1.8V supply voltage and LVDS output levels match your system requirements. Check the ±30ppm frequency stability tolerance against your design specifications. Ensure the -40°C to 85°C operating temperature range is suitable for your environmental conditions. Validate the 6-SMD no-lead package dimensions for PCB footprint compatibility.

Selection Notes

Select this component when a 156.25 MHz clock signal is required with LVDS interface standards. Consider the 1.8V operating voltage for low-power system designs. Evaluate the ±30ppm stability requirement against jitter-sensitive applications. Assess the surface-mount form factor for space-constrained layouts. Compare the enable/disable feature against systems requiring dynamic clock gating.

Part Context

This oscillator belongs to the standard XO series from Suzhou Hangjing, focusing on quartz frequency control units. The company specializes in research and production of such components for computing and communication sectors. This specific model addresses needs for reliable timing solutions in industrial and commercial electronic devices.

Replacement Considerations

Consult official distributor databases for cross-reference candidates. Verify electrical compatibility including LVDS output type and 1.8V supply requirements. Ensure pinout and mechanical dimensions align with existing PCB layouts before substitution.
