1553H-100.00J33DTSNK

Overview

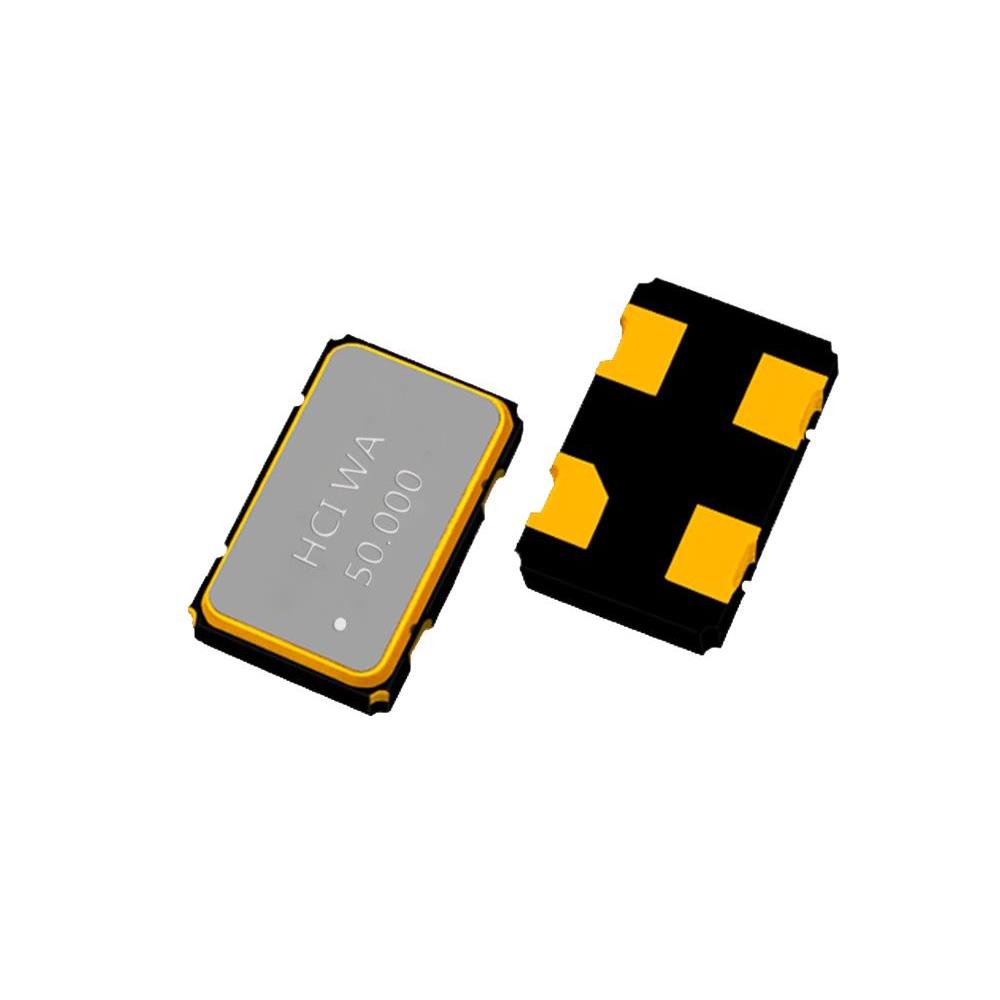

The 1553H-100.00J33DTSNK is a 100 MHz crystal oscillator (XO) manufactured by Suzhou Hangjing Elec & Tech Co., Ltd. It utilizes HCMOS output logic and operates at a supply voltage of 3.3V. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, no lead package, designated as SMD5032. This component serves as a precision timing source for digital circuits requiring stable clock signals.

Feature Summary

• Provides a stable 100 MHz clock signal using HCMOS output technology
• Operates on a standard 3.3V power supply with integrated enable and disable controls
• Utilizes a compact 4-SMD surface-mount package for efficient board space utilization

Applications

• Telecommunications equipment requiring precise frequency synchronization
• Industrial control systems needing reliable timing references
• Consumer electronics utilizing high-speed data processing

Procurement Notes

Verify the complete part number including suffixes to ensure correct voltage, frequency, and package specifications. Confirm that the HCMOS output level matches the receiving circuit's input requirements. Check for RoHS compliance status if required by project regulations. Request official datasheets from authorized distributors to validate electrical characteristics before integration.

Selection Notes

Select this component when a 100 MHz frequency is specifically required alongside 3.3V operation. Ensure the design accommodates the 4-SMD footprint dimensions. Consider the enable pin functionality if dynamic power saving is necessary. Verify that the load capacitance requirements align with the system design to maintain frequency accuracy.

Part Context

This oscillator belongs to the 1553H series from Suzhou Hangjing Elec & Tech Co., Ltd., which focuses on quartz frequency control components. The company specializes in R&D and production of crystals, oscillators, and filters. This specific model represents a standard XO variant designed for general-purpose high-frequency applications in modern electronic devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching frequency, voltage, package, and output logic type. Consult manufacturer catalogs for direct equivalents or contact technical support for compatibility verification.
