Product Detailed Parameters
- Description：7050 6pin 125MHz HCSL 1.8V +/-30
- Series：1575C
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：125 MHz
- Function：Enable/Disable
- Output：HCSL
- Voltage - Supply：1.8V
- Frequency Stability：±300ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：-
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：-
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Supplier Device Package：-
Download product information
Overview

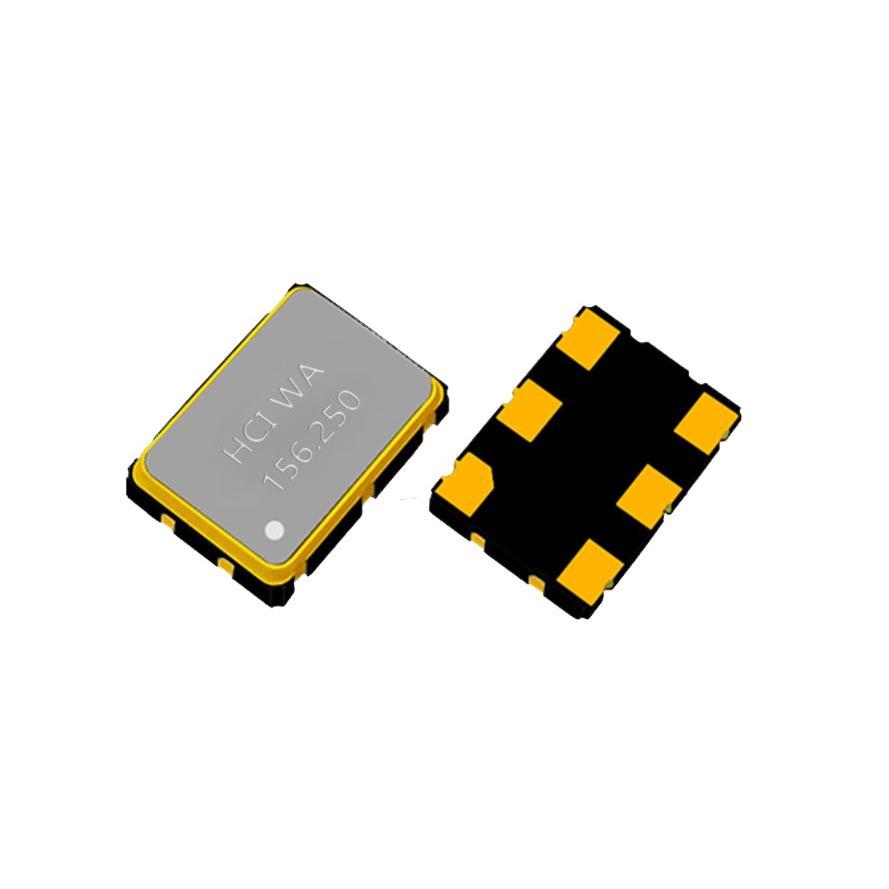

The 1575C-125.000J18DTK is a 125 MHz crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It utilizes HCSL output signaling and operates at a supply voltage of 1.8V. The device features enable and disable control functionality. It is housed in a 6-SMD, no lead package configuration.
Feature Summary
- HCSL output signaling for high-speed digital interfaces
- Integrated enable and disable control capability
- Compact surface-mount package design
Applications
- High-speed data transmission systems
- Digital signal processing circuits
- Communication equipment clocking
Procurement Notes
Verify the manufacturer part number against official Suzhou Hangjing documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical specifications and packaging type. Request datasheets directly from authorized channels to validate technical parameters before integration into designs.
Selection Notes
Select this component when HCSL interface compatibility is required for 125 MHz applications. Ensure the 1.8V supply voltage aligns with the system power architecture. Verify that the 6-SMD footprint fits the PCB layout constraints and that enable/disable control logic is supported by the host circuitry.
Part Context
This oscillator belongs to the 1575C series from Suzhou Hangjing, which specializes in quartz frequency control units. The series offers various stability options and operating temperatures suitable for compact electronic applications requiring reliable timing signals.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Cross-referencing requires matching HCSL output, 125 MHz frequency, 1.8V operation, and 6-SMD package dimensions with verified equivalent components from other manufacturers.
