1575D150000K33DTK

Overview

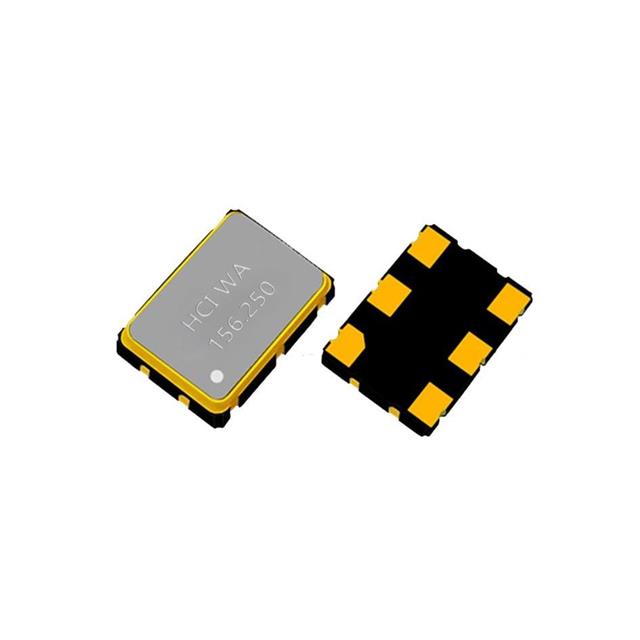

The 1575D150000K33DTK is a 150 MHz crystal oscillator (XO) manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It utilizes LVDS output signaling and operates on a 3.3V supply voltage. The device features an enable/disable function for power management control. It is housed in a compact 6-SMD, No Lead surface-mount package. The unit supports a frequency stability of ±25ppm and functions within an operating temperature range of -40°C to +85°C.

Feature Summary

• LVDS output interface for high-speed signal integrity
• Integrated enable and disable control functionality
• Surface-mount design with no-lead construction

Applications

• High-speed digital data transmission systems
• Communication equipment requiring precise timing
• Industrial control systems operating in varied temperatures

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct voltage and output type compatibility. Confirm that the 6-SMD package dimensions match the target PCB footprint requirements. Validate the ±25ppm frequency stability specification against system clock tolerance limits before finalizing procurement orders.

Selection Notes

Select this component when LVDS signaling is required for noise immunity in high-frequency applications. Ensure the 3.3V supply rail aligns with the system power architecture. Consider the -40°C to +85°C industrial temperature range if the deployment environment experiences significant thermal fluctuations or extreme conditions.

Part Context

Suzhou Hangjing Elec&Tech Co.,Ltd specializes in quartz frequency controlling units. This model represents their standard XO series designed for reliable clock generation. The company focuses on R&D and production of these components for electronic systems requiring stable frequency references.

Replacement Considerations

Cross-reference pinout and electrical specifications with alternative LVDS oscillators from other manufacturers. Verify that substitute parts support the same 3.3V supply and enable logic levels to maintain circuit compatibility without redesign.
