Product Detailed Parameters

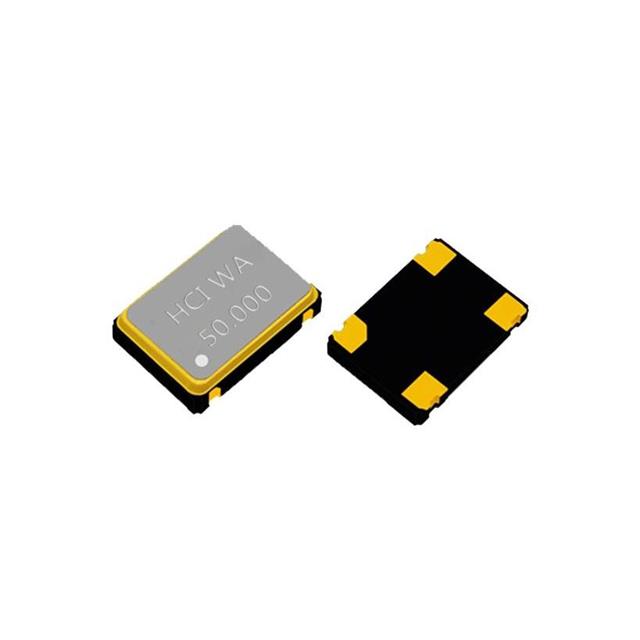

- Description：XTAL OSC XO 12.288MHZ CMOS SMD
- Series：-
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：12.288 MHz
- Function：Enable/Disable
- Output：CMOS
- Voltage - Supply：3.3V
- Frequency Stability：±50ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：20mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.055" (1.40mm)
- Supplier Device Package：-
Download product information
Overview
The 1575H12288G33DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 12.288 MHz and utilizes HCMOS output logic levels. The device is powered by a 3.3V supply voltage and features an enable/disable control function for power management. It is housed in a compact 4-SMD, No Lead package with dimensions of 7.00mm x 5.00mm (0.276" L x 0.197" W). This component is designed for surface-mount applications requiring precise timing signals.
Feature Summary
- Integrated enable and disable functionality for efficient power management
- Standard HCMOS output signal compatibility
- Compact surface-mount package design for space-constrained layouts
Applications
- General electronic timing circuits
- Embedded systems requiring clock sources
- Consumer electronics devices
Procurement Notes
Verify the exact operating temperature range and load capacitance specifications from the official manufacturer datasheet before integration. Confirm that the 3.3V supply voltage aligns with your system's power rails. Ensure the PCB footprint matches the 7.00mm x 5.00mm outline to guarantee proper soldering and mechanical stability during assembly processes.
Selection Notes
Select this component when a 12.288 MHz clock signal is required with low-profile surface-mount packaging. Consider the HCMOS interface for direct logic interfacing without additional buffering. Evaluate the enable pin utility if dynamic power saving is necessary for the target application environment.
Part Context
This part belongs to the standard crystal oscillator series produced by Suzhou Hangjing. The company specializes in quartz frequency control components, including oscillators and filters. The 1575H series typically offers reliable performance for general-purpose timing applications in consumer and industrial electronics sectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other 12.288 MHz HCMOS SMD oscillators only after verifying electrical and mechanical compatibility.
