1575P-189.33333G25DTSK

Overview

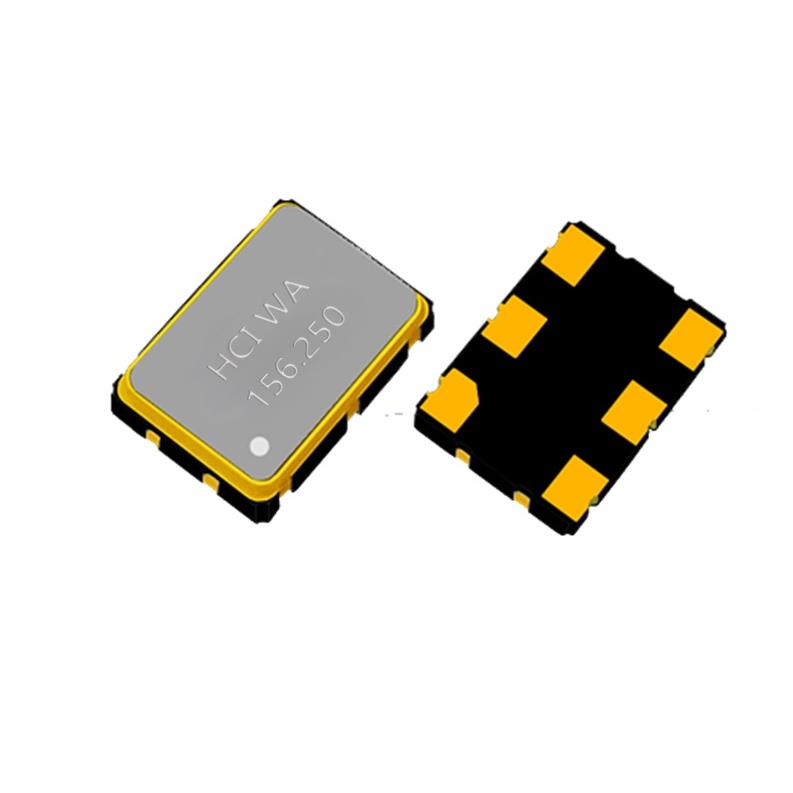

The 1575P-189.33333G25DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 189.33333 MHz and utilizes the LVPECL output format. The device functions with a supply voltage of 2.5V and includes enable/disable control capabilities. It is housed in a compact 6-SMD, No Lead package, designed for surface-mount applications.

Feature Summary

• LVPECL output interface
• Enable/Disable control functionality
• Compact SMD package

Applications

• Computing systems
• Communication equipment
• Automotive electronics
• Medical devices
• Industrial control systems

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the LVPECL signal levels and 2.5V supply voltage align with the target circuit design. Check the specific enable/disable pin configuration if active control is required. Ensure the 6-SMD footprint matches the PCB layout specifications before finalizing procurement orders.

Selection Notes

Select this component when an LVPECL clock source is required at approximately 189 MHz. The 2.5V operating voltage suits low-power designs. The enable feature allows for power management. Consider the 6-SMD package size for space-constrained layouts. Verify temperature stability requirements against application needs.

Part Context

This oscillator belongs to the 1575P series from Suzhou Hangjing, which specializes in quartz frequency control units. The series offers various frequencies and packages. Hangjing focuses on high-reliability components for computing, communication, and industrial sectors. The company emphasizes tight stability and robust performance in small form factors.

Replacement Considerations

No public confirmed substitute part numbers are available.
