1609990-5

Overview

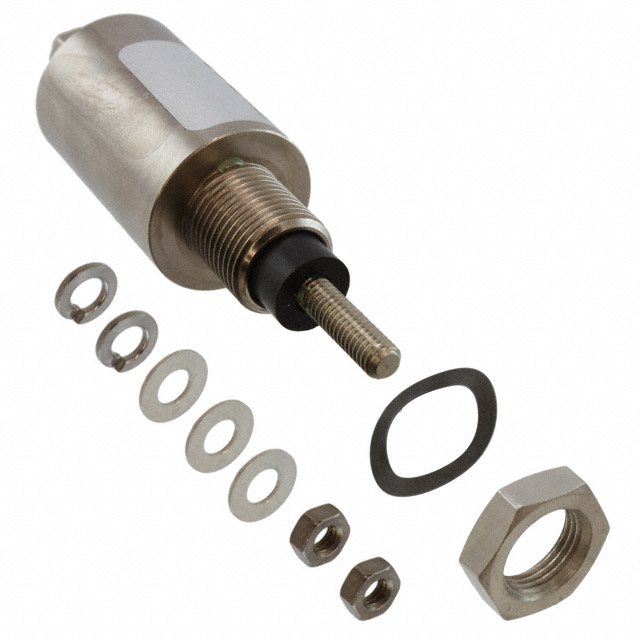

The TE Connectivity Corcom Filters part number 1609990-5 is a feedthrough capacitor belonging to the AFC series. It features a capacitance of 0.047 µF and a voltage rating of 250V. The component utilizes an axial package with threaded terminals for secure mounting. This device is designed for high-frequency noise suppression in electronic circuits.

Feature Summary

• Provides effective attenuation of electromagnetic interference through feedthrough capacitor technology
• Features axial construction with threaded terminals for robust mechanical integration
• Designed for reliable operation within specified voltage and capacitance limits

Applications

• General electronic circuit noise suppression
• Power supply input filtering
• Signal line protection against high-frequency interference

Procurement Notes

Verify the exact capacitance value of 0.047 µF and the 250V rating against your schematic requirements. Confirm that the axial threaded terminal style matches your panel or chassis mounting design. Ensure the operating environment remains within the component's specified electrical limits to maintain performance integrity.

Selection Notes

Select this component when a compact, threaded-mount feedthrough capacitor is required for EMI suppression. The 0.047 µF value suits general-purpose filtering applications. Consider the axial form factor for space-constrained installations requiring secure mechanical fixation via threading.

Part Context

This component is part of the TE Connectivity Corcom Filters portfolio, specifically categorized under feedthrough capacitors. It serves as a passive electronic component for managing signal integrity by shunting high-frequency noise to ground.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
