1609991-3

Overview

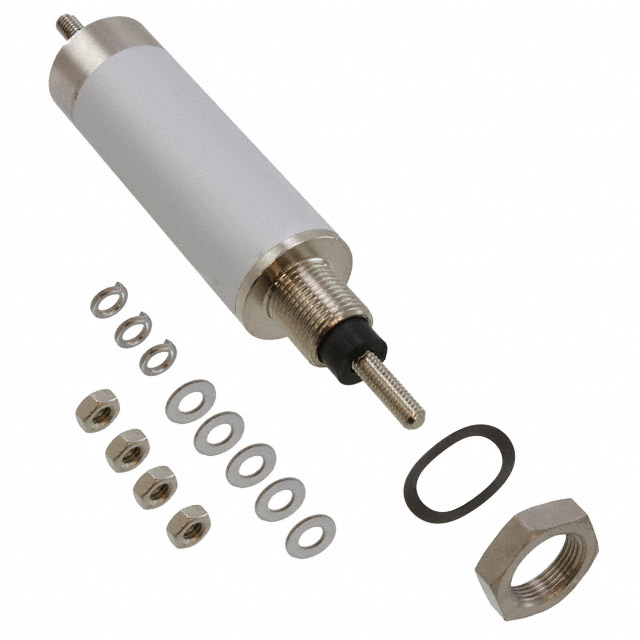

The TE Connectivity Corcom Filters 1609991-3 is a feedthrough capacitor with a capacitance of 10,000 pF (10 nF) and a rated voltage of 130V. It supports a current rating of 32 A and features a maximum DC resistance of 4 mΩ. The component utilizes axial threaded terminals with M4 thread specifications. Its physical dimensions are 20.00 mm in diameter by 61.00 mm in length. The operating temperature range extends from -40°C to 60°C.

Feature Summary

• Provides EMI/RFI noise suppression through feedthrough capacitor technology
• Features robust axial construction with threaded terminals for secure mounting
• Designed for high-current applications with a 32 A rating

Applications

• EMI/RFI filtering in power supply circuits
• Noise reduction in variable speed motor drives
• Process automation equipment filtering
• Elevator control systems

Procurement Notes

Verify the part status as discontinued before procurement planning. Confirm that the M4 threaded terminal interface matches existing panel cutouts. Ensure the 130V rating and 32 A current capacity meet system requirements. Check for available replacement components due to end-of-life status.

Selection Notes

Select this component when a 10,000 pF feedthrough capacitor is required for axial mounting. Consider the 130V rating and 32 A current handling capabilities. Evaluate the M4 threaded terminal compatibility with enclosure designs. Compare against other Corcom FFA series variants if different capacitance or current ratings are needed.

Part Context

This component belongs to the Corcom FFA series of feedthrough capacitors manufactured by TE Connectivity. These filters are designed for EMI and RFI suppression in various industrial and commercial applications. The series offers single-phase solutions with robust construction for reliable performance in demanding environments.

Replacement Considerations

Public confirmed substitute part numbers: 2-1609991-3 (1 µF variant). Verify electrical parameter differences before substitution.
