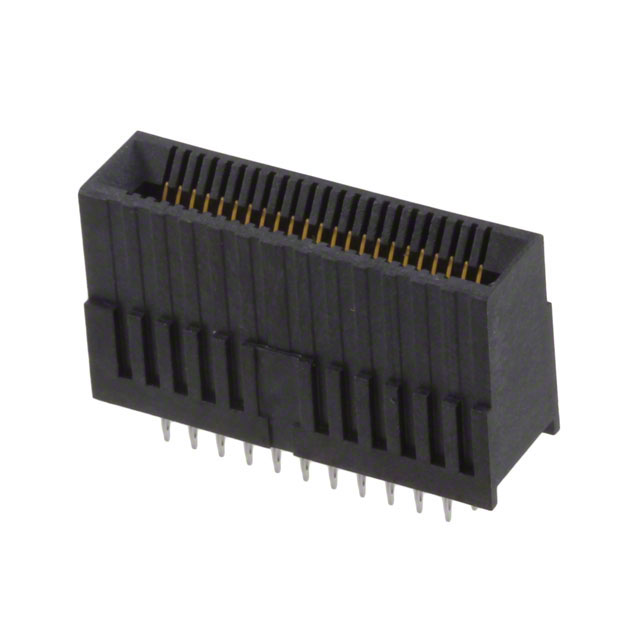

1706731046 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Molex. Its product description is CONN EDGE DUAL FMALE 46POS 0.031. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1706731046
- Description：CONN EDGE DUAL FMALE 46POS 0.031
- Series：EdgeLine 170673
- Mfr：Molex
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：46
- Card Thickness：0.063" (1.60mm)
- Number of Rows：2
- Pitch：0.031" (0.80mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Press-Fit
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 1706731046
Edgeboard Connectors Overview
The Molex 170673-1046 is an EdgeLine vertical connector designed for high-speed data transmission. It features a dual edge card interface with 46 positions and a 0.80mm pitch. The connector supports data rates up to 12.5 Gbps and is compatible with PCBs having a thickness of 1.57mm. It utilizes a single bay configuration and gold-plated contacts to ensure reliable signal integrity in demanding electronic applications.
Edgeboard Connectors Feature Summary
- Supports high-speed data transmission at 12.5 Gbps
- Features a robust vertical design for edge card connections
- Utilizes gold-plated contacts for reliable signal integrity
Edgeboard Connectors Applications
- High-speed backplane interconnects
- Edge card connections in industrial equipment
- Data center infrastructure modules
Edgeboard Connectors Procurement Notes
Verify the part number against official Molex documentation to confirm current status and specifications. Ensure compatibility with required PCB thickness and pitch standards before procurement. Cross-reference with authorized distributors to validate authenticity and avoid counterfeit components.
Edgeboard Connectors Selection Notes
Select this component for applications requiring high-density, high-speed vertical connectivity. Consider the 0.80mm pitch and 46-position capacity when designing board layouts. Evaluate environmental requirements and signal integrity needs to ensure this connector meets performance criteria.
Edgeboard Connectors Part Context
This part belongs to the Molex EdgeLine family of connectors, which are engineered for high-speed data applications. The series offers various configurations to support diverse industry standards and performance requirements, providing reliable interconnect solutions for complex electronic systems.
Edgeboard Connectors Replacement Considerations
Consult official Molex substitution guides for verified alternatives. Ensure any replacement matches the 0.80mm pitch, 46-position count, and 12.5 Gbps capability. Verify mechanical fit and electrical performance compatibility before switching parts.
