1706731200

Edgeboard Connectors Overview

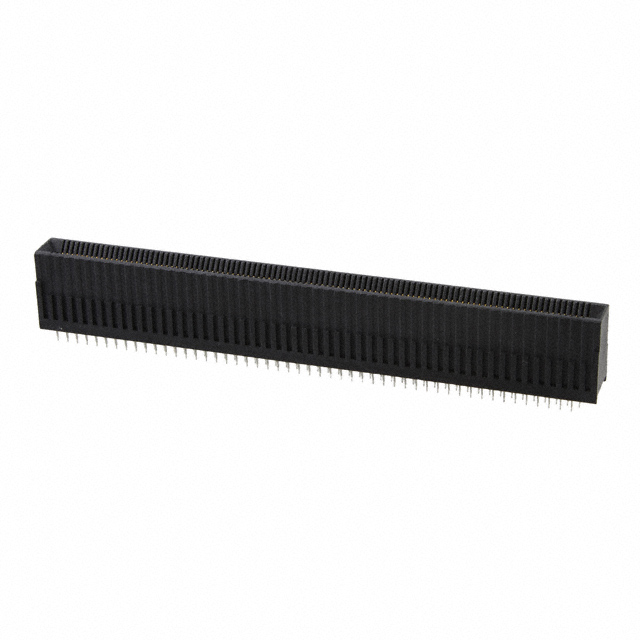

The Molex 1706731200 is a Card Edge Connector belonging to the EdgeLine High Speed Connectors series. It features 200 positions arranged across two rows with a 0.80mm pitch. The connector supports a card thickness of 1.60mm and utilizes solder termination for surface mount or through-hole installation.

Edgeboard Connectors Feature Summary

• High-speed connectivity design supporting 12.5 Gbps data rates
• Dual-row configuration providing 200 circuit positions
• Compatible with standard 1.60mm thick edge cards

Edgeboard Connectors Applications

• High-speed data transmission modules
• Server backplane interconnects
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version on molex.com before ordering, as product information may be updated. Confirm that the required 1.60mm card thickness matches your PCB design constraints. Ensure compatibility with the designated removal tooling if module extraction is required for maintenance.

Edgeboard Connectors Selection Notes

Select this component when a high-density interface with 200 contacts is necessary. The 0.80mm pitch allows for compact board layouts while maintaining signal integrity at high speeds. Verify that the manufacturing process supports the specified solder termination method for reliable attachment.

Edgeboard Connectors Part Context

This part belongs to the EdgeLine family, which specializes in vertical connectors for high-speed applications. The series is engineered to meet demanding bandwidth requirements typical in modern computing and networking infrastructure. It represents a standardized solution for connecting edge cards to printed circuit boards.

Edgeboard Connectors Replacement Considerations

Retrofit compatibility depends on whether the legacy connector shares identical mechanical dimensions and pinout configurations. Verify electrical specifications and mating force requirements against existing system designs before substitution.
