171-170-231-012

Edgeboard Connectors Overview

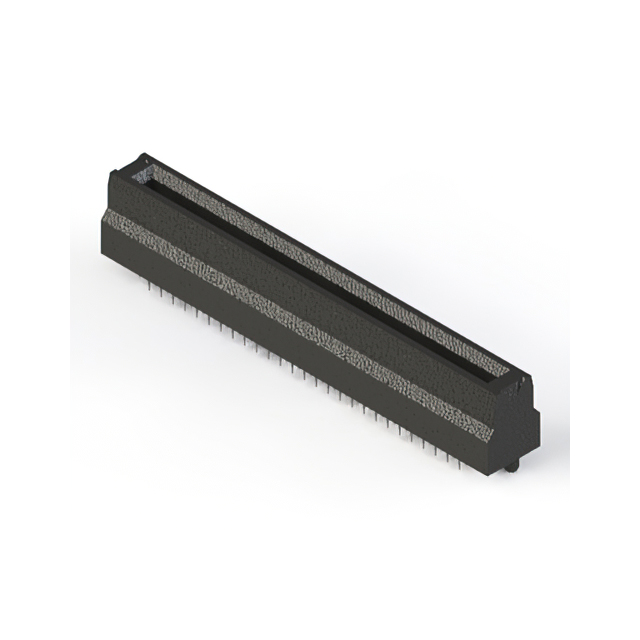

The EDAC Inc. part number 171-170-231-012 is a Micro TCA connector belonging to the 171 Series. It is specified as a female connector with 170 positions. The component utilizes a 0.75 mm pitch and features a housing constructed from Liquid Crystal Polymer (LCP). The contact material is identified as Copper Alloy. This configuration supports high-density interconnect requirements within telecommunications infrastructure applications.

Edgeboard Connectors Feature Summary

• Micro TCA form factor designed for high-density signal routing
• Female contact configuration with 170 positions
• Liquid Crystal Polymer housing for thermal stability
• Copper alloy contacts ensuring reliable conductivity

Edgeboard Connectors Applications

• Telecommunications infrastructure systems
• Data center interconnect solutions
• Communication node hardware
• Smart building IoT applications

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging quantity against the manufacturer's current documentation before ordering. Confirm that the LCP housing material and copper alloy contacts meet the environmental and mechanical stress requirements of the target assembly. Ensure compatibility with mating male connectors in the same series to maintain proper alignment and electrical continuity.

Edgeboard Connectors Selection Notes

Select this component when a 170-position female interface is required for Micro TCA architectures. The 0.75 mm pitch dictates board layout constraints and mating partner selection. Evaluate the LCP housing properties for thermal resistance needs. Confirm that the copper alloy contact specification aligns with the current carrying and durability demands of the application environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 171 Series, which focuses on Micro TCA standards. The series provides standardized interfaces for high-density telecommunications equipment. The 171-170-231-012 variant specifically addresses the need for robust female connections in dense packing configurations common in modern network hardware.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify pin count, pitch, and housing material compatibility before considering cross-references. Generic D-sub or standard pitch connectors are not suitable replacements due to differing form factors and electrical specifications.
