1733000106

Edgeboard Connectors Overview

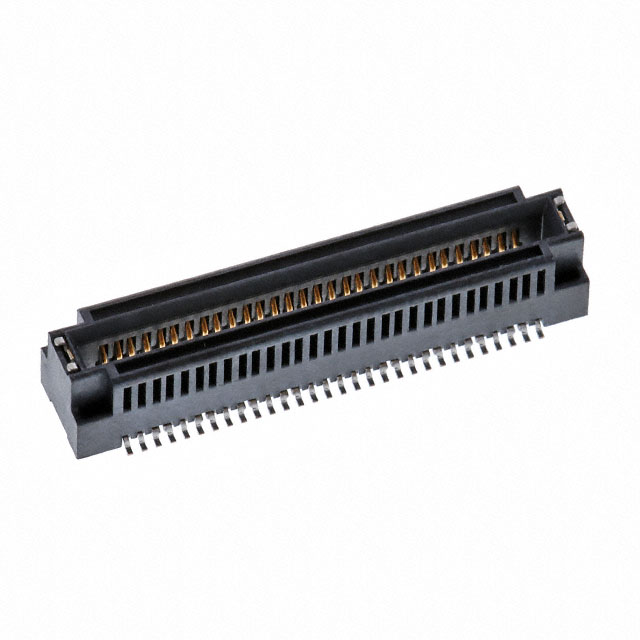

The Molex 1733000106 is a SpeedEdge vertical receptacle connector designed for board-to-board and mezzanine applications. It features a 0.80mm pitch, 60 circuits, and a 5.60mm height. The component utilizes gold contact finish with a thickness of 30.0µin (0.76µm) on copper alloy contacts. It is constructed from black UL94V-0 rated resin and supports surface mount termination via solder. This dual-edge card edge connector is engineered for high-density interconnects in high-cycle environments.

Edgeboard Connectors Feature Summary

• High-density interconnect capability with 0.80mm pitch
• Rugged construction suitable for high-cycle mating applications
• Gold-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

• Mezzanine connections
• Board-to-board interconnects
• High-cycle PCB mating systems

Edgeboard Connectors Procurement Notes

Verify the specific circuit count and physical dimensions against the official datasheet to ensure compatibility with the target PCB layout. Confirm that the required soldering profile aligns with the surface mount termination specifications provided by the manufacturer.

Edgeboard Connectors Selection Notes

Select this component when a 0.80mm pitch vertical receptacle is required for dense board stacking. Ensure the design accommodates the 5.60mm height constraint and verifies that the dual-edge configuration matches the mating card edge geometry.

Edgeboard Connectors Part Context

This part belongs to the Molex SpeedEdge series, which provides rugged solutions for connecting large PCBs. The system supports various circuit sizes and differential pair configurations, offering a versatile platform for high-speed digital and mixed-signal applications requiring reliable mechanical stability.

Edgeboard Connectors Replacement Considerations

Consult the official Molex selection guide for alternative circuit counts within the SpeedEdge family. Verify pinout compatibility and mechanical tolerances before substituting with other dual-edge connectors from different manufacturers.
