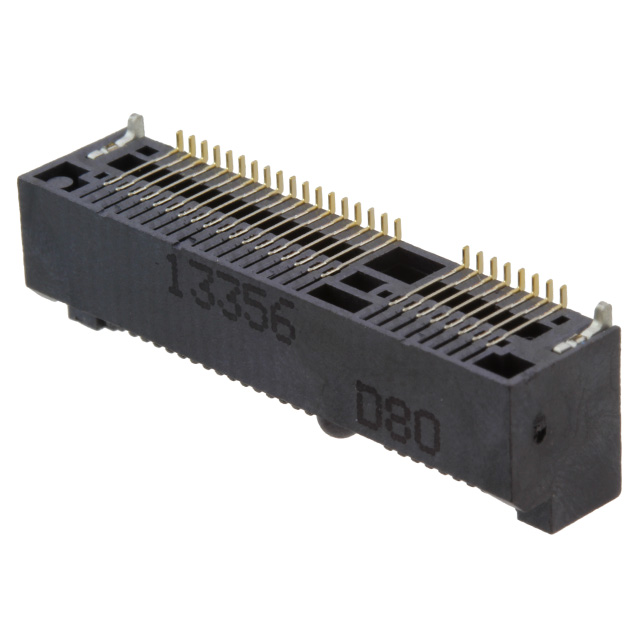

1759546-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PCI EXP MIN FML 52POS 0.031. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 1759546-1
- Description：CONN PCI EXP MIN FML 52POS 0.031
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Card Type：PCI Express Mini Card
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：52
- Card Thickness：-
- Number of Rows：2
- Pitch：0.031" (0.80mm)
- Read Out：Dual
- Features：-
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：Flash
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 1759546-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors part number 1759546-1 is a 52-position female edge connector designed for PCI Express Mini Card applications. It features a 0.8 mm (0.031 inch) pitch and a housing height of 9.9 mm. The contacts are gold-plated to ensure reliable signal transmission. Constructed with liquid crystal polymer (LCP) housing, this component belongs to the Mini PCI Express series and is intended for secure board-to-card connections in compact electronic systems.
Edgeboard Connectors Feature Summary
- Designed specifically for PCI Express Mini Card interface standards
- Utilizes gold-plated contacts for enhanced conductivity and corrosion resistance
- Features a robust liquid crystal polymer housing for structural stability
Edgeboard Connectors Applications
- PCI Express Mini Card slot interfaces
- Compact wireless communication modules
- Solid-state drive expansion slots
- Embedded computing system interconnects
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with TE Connectivity or authorized distributors before procurement. Ensure that the ordering suffix matches the required mechanical and electrical specifications for your design. Confirm lead times and availability through official supply chain channels to avoid counterfeit components.
Edgeboard Connectors Selection Notes
Select this connector when a 52-pin female edge mount solution is required for Mini PCIe form factors. Consider the 0.8 mm pitch and 9.9 mm height constraints during PCB layout. Verify compatibility with mating card dimensions and ensure the LCP material properties meet the thermal requirements of the application environment.
Edgeboard Connectors Part Context
This component is part of the TE Connectivity AMP Connectors portfolio, specializing in high-reliability interconnect solutions. The Mini PCI Express series addresses the demand for small-form-factor connectivity in modern electronics. TE Connectivity provides comprehensive support for these connectors through detailed documentation and engineering resources.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available in the provided source data. Consult TE Connectivity technical support for potential cross-reference options if this specific part number becomes unavailable.
