1761446-1

Edgeboard Connectors Overview

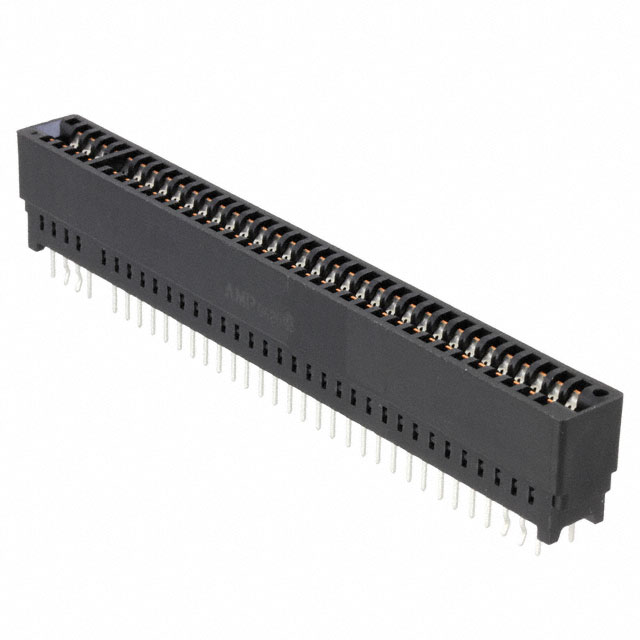

The TE Connectivity AMP Connectors part number 1761446-1 is a high-density card edge power connector designed for robust electrical interconnections. This component features a signal pitch of 1.27mm, engineered to minimize temperature rise and reduce power loss during operation. It belongs to the high-density connector family, providing reliable performance in demanding electronic applications where efficient power distribution and signal integrity are critical requirements.

Edgeboard Connectors Feature Summary

• High-density design optimized for low temperature rise
• Engineered to minimize power loss during operation
• Utilizes a 1.27mm signal pitch for compact integration

Edgeboard Connectors Applications

• High-density board-to-board power connections
• Applications requiring minimized thermal elevation
• Systems needing reduced power loss interconnects

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and mechanical dimensions against your PCB layout requirements before procurement. Confirm that the 1.27mm pitch aligns with your system's density constraints. Ensure compatibility with mating card edge connectors regarding height and contact plating specifications to guarantee reliable electrical performance.

Edgeboard Connectors Selection Notes

Select this component when space efficiency is paramount alongside thermal management needs. The 1.27mm pitch allows for higher pin counts within limited footprints compared to standard pitches. Consider its suitability for applications where minimizing resistive heating and maintaining stable power delivery are essential design priorities.

Edgeboard Connectors Part Context

This connector is part of TE Connectivity's AMP series, known for ruggedized electronic components. The AMP brand has a history dating back to 1941, focusing on reliable interconnection solutions for harsh environments. This specific model represents the evolution towards high-density power solutions, supporting modern electronics' increasing complexity and space constraints.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical characteristics carefully if considering alternative high-density card edge power connectors from other manufacturers or different TE product lines.
