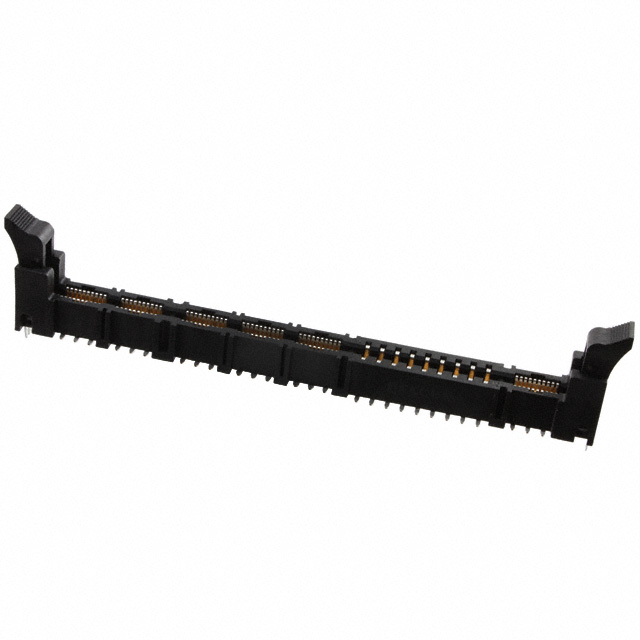

1766336-1

$13.92

Description：CONN VRM FMALE 30POS GOLD
Series：Mini Crown Edge, Elcon
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:cc3210d4efb2 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1766336-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN VRM FMALE 30POS GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 1766336-1

Description：CONN VRM FMALE 30POS GOLD
Series：Mini Crown Edge, Elcon
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：VRM
Gender：Female
Number of Positions/Bay/Row：1; 9; 1; 1; 1; 1; 1
Number of Positions：30 (18 + 12 Power)
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：-
Read Out：Dual
Features：Board Lock, Latches
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 105°C

Edgeboard Connectors datasheet and documents for 1766336-1

1766336-1

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 1766336-1 is a female connector designed for vertical board-to-board applications. It features a total of 30 positions, configured with 18 signal contacts and 12 power contacts. The housing is black, and the contacts are gold-plated to ensure reliable electrical performance. This component belongs to the Edgeboard series and is manufactured by TE Connectivity AMP Connectors.

Edgeboard Connectors Feature Summary

Vertical mating configuration for direct board stacking
Integrated signal and power contact arrangement within a single housing
Gold-plated contact surfaces for enhanced conductivity

Edgeboard Connectors Applications

High-density electronic assemblies requiring mixed signal and power routing
Board-to-board interconnects in telecommunications infrastructure
Industrial control systems utilizing vertical mounting constraints

Edgeboard Connectors Procurement Notes

Verify the specific pinout configuration against the official datasheet before integration. Confirm that the receiving board accommodates the vertical profile and height requirements. Ensure compatibility with mating connectors from the same Edgeboard series family to maintain mechanical alignment and electrical integrity during assembly processes.

Edgeboard Connectors Selection Notes

Select this component when a combined signal and power solution is required in a vertical form factor. The 30-position count offers a compact footprint compared to separate connectors. Consider the gold plating for environments where corrosion resistance is critical. Evaluate the thermal operating range of negative fifty-five degrees Celsius to one hundred five degrees Celsius against system demands.

Edgeboard Connectors Part Context

This connector is part of the Edgeboard series, which focuses on high-density interconnect solutions. The series supports various configurations for different application needs. TE Connectivity AMP Connectors designs these components to meet rigorous reliability standards for industrial and communication equipment markets.
