1766442-1

Edgeboard Connectors Overview

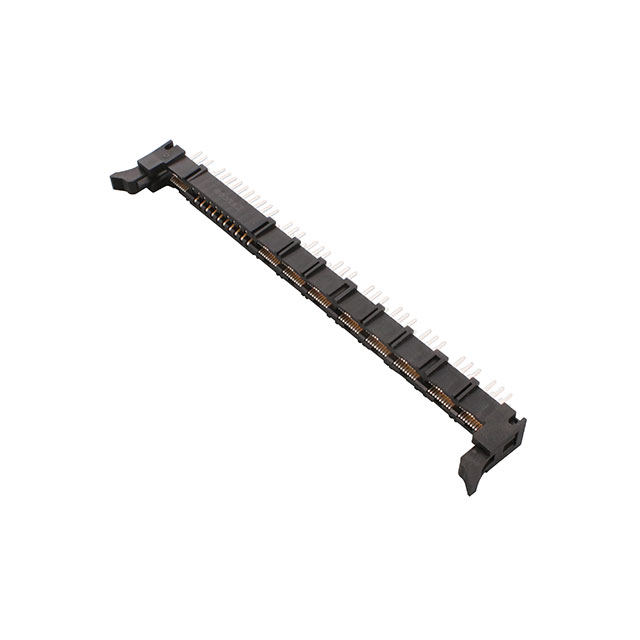

The TE Connectivity AMP Connectors part number 1766442-1 is a Crown Edge connector designed for female mating configurations. This component features a 38-position layout with gold-plated contacts to ensure reliable signal transmission and low contact resistance. It utilizes a through-hole mounting style, providing secure attachment to printed circuit boards. The connector housing is black, offering visual identification and standard industrial aesthetics. Designed for robust performance in demanding environments, this series supports current ratings ranging from 5.2A to 46A per pitch and maintains contact resistance between 0.7mΩ and 10mΩ.

Edgeboard Connectors Feature Summary

• Crown Edge design ensures stable connection integrity
• Gold-plated contacts provide corrosion resistance
• Through-hole mounting secures PCB attachment

Edgeboard Connectors Applications

• Home appliance internal connections
• Washing machine control circuits
• Industrial equipment power distribution

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact finish against project requirements before ordering. Confirm that the through-hole mounting style matches the target PCB layout. Ensure the current rating aligns with the application's electrical load. Check for any recent product change notices or obsolescence updates from the manufacturer. Cross-reference the exact suffix if variations exist within the same series.

Edgeboard Connectors Selection Notes

Select this component when high reliability and stable connectivity are required for home appliances or washing machines. The Crown Edge design offers superior mechanical stability compared to standard edge connectors. Gold plating is essential for applications requiring long-term corrosion resistance. Ensure the PCB design accommodates the through-hole footprint and spacing requirements of the 38-position array.

Edgeboard Connectors Part Context

This connector belongs to the Crown Edge series by TE Connectivity AMP Connectors. The series is engineered for durable connections in consumer electronics and home appliances. It provides a balance of electrical performance and mechanical strength. The 38-position configuration allows for multiple signal or power lines in a compact form factor suitable for modern electronic assemblies.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
