1N5392

Overview

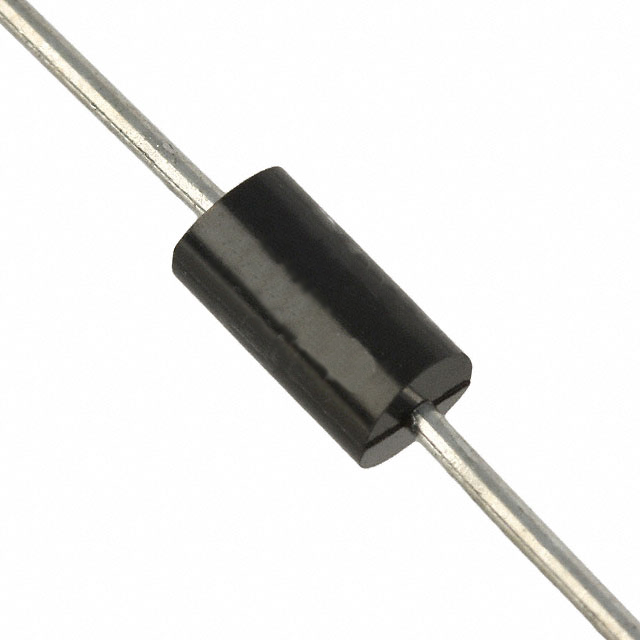

The onsemi 1N5392 is a standard recovery rectifier diode designed for general-purpose applications. It features a single configuration housed in the DO-15 through-hole package. The device supports a maximum average forward current of 1.5 A and a repetitive peak reverse voltage of 100 V. Key electrical characteristics include a maximum forward voltage of 1.4 V, a reverse leakage current of 5 µA, and a maximum non-repetitive peak forward surge current of 50 A. The junction temperature range extends from -55 °C to 150 °C.

Feature Summary

• Standard recovery rectifier structure suitable for general-purpose power conversion
• Glass-passivated junction construction for enhanced reliability
• High forward surge capability to withstand transient current loads

Applications

• General purpose rectification in power supplies
• Inverter circuits
• Converter topologies
• Freewheeling diode applications

Procurement Notes

Verify the specific manufacturer designation when sourcing, as the 1N5392 part number is utilized by multiple semiconductor producers including Vishay and Diotec. Confirm that the received component matches the required DO-15 package and electrical ratings. Ensure compliance with environmental standards such as RoHS if applicable to the project requirements. Cross-reference datasheets to confirm parameter consistency across different production batches.

Selection Notes

Select this component for designs requiring a robust 1.5 A rectifier with a 100 V blocking voltage. The DO-15 package provides adequate thermal dissipation for moderate power levels. Consider the standard recovery time for frequency constraints. Evaluate alternative manufacturers if specific supply chain diversification is necessary, ensuring all critical parameters remain identical.

Part Context

This component belongs to the widely recognized 1N53xx series of plastic rectifiers. These devices are standardized across the industry for basic AC-to-DC conversion tasks. The 1N5392 specifically denotes the 100 V variant within this family, sharing mechanical and electrical similarities with adjacent voltage ratings like the 1N5391 or 1N5393.

Replacement Considerations

Direct substitutes include the Vishay 1N5392/100 and Diotec Semiconductor 1N5392. Verify pinout compatibility and thermal resistance values before implementation.
