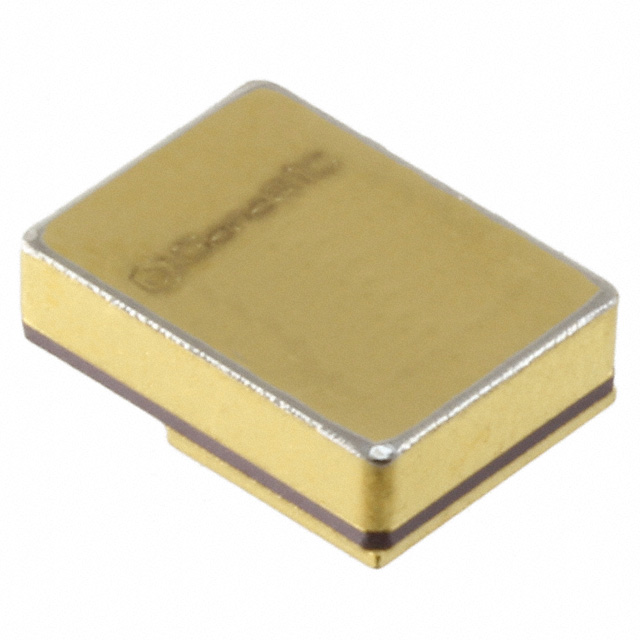

1N8031-GA

Overview

The GeneSiC Semiconductor 1N8031-GA is a silicon carbide (SiC) Schottky diode designed for high-performance rectification. It integrates a SiC_Schottky model and a SiC_PiN model within its SPICE representation to accurately simulate device behavior across varying current conditions. The component features a breakdown voltage of 650 V, with specific electrical parameters defined for both the Schottky and PiN operational modes in the provided simulation data.

Feature Summary

• Utilizes silicon carbide technology for enhanced thermal stability and switching efficiency.
• Provides dual-mode SPICE modeling capability to represent both Schottky and PiN diode characteristics.
• Engineered for accurate simulation up to twice the rated drain current.

Applications

• High-frequency power supply rectification
• Industrial motor drive circuits
• Uninterruptible power supply (UPS) systems

Procurement Notes

Verify the specific package type and pin configuration against the official datasheet before integration, as the source material primarily provides simulation models rather than physical packaging details. Ensure that the 650 V breakdown rating aligns with the system's maximum voltage requirements. Confirm compatibility with the intended thermal management solution given the silicon carbide construction.

Selection Notes

Select this component when high-temperature operation and low reverse recovery charge are critical. The availability of both Schottky and PiN models in the simulation allows designers to evaluate performance under different load conditions. Consider the 650 V rating for medium-voltage applications where standard silicon diodes may exhibit higher losses or slower switching speeds.

Part Context

This component belongs to the family of silicon carbide power devices manufactured by GeneSiC Semiconductor. Silicon carbide materials offer superior properties compared to traditional silicon, including higher breakdown fields and thermal conductivity. The 1N8031-GA specifically targets applications requiring robust performance in harsh electrical environments.

Replacement Considerations

Public confirmed substitute part numbers only; omit otherwise.

FAQ

What types of diode models are included in the 1N8031-GA SPICE file?

The SPICE model includes both a SiC_Schottky model and a SiC_PiN model to cover different operational regimes.

What is the breakdown voltage specified for the 1N8031-GA?

The breakdown voltage (BV) is specified as 650 V for both the Schottky and PiN models.
