2-1612163-2

Edgeboard Connectors Overview

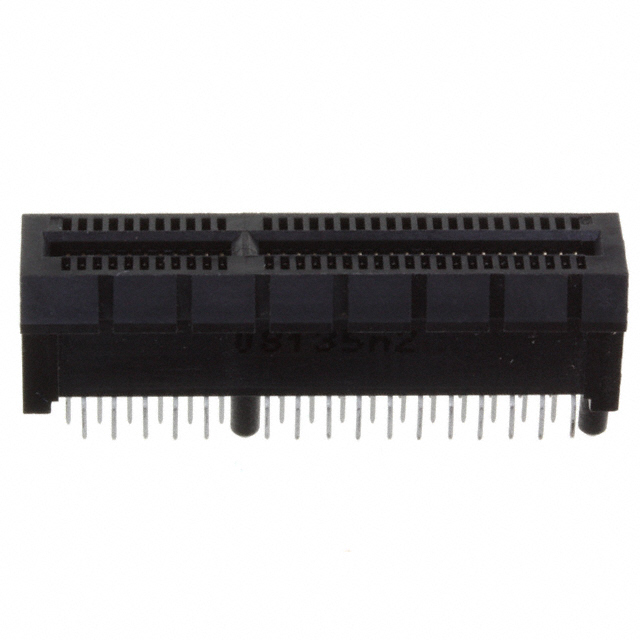

The TE Connectivity AMP Connectors part number 2-1612163-2 is a PCI Express card edge connector designed for high-speed data transmission applications. This component features a female gender configuration with 64 positions arranged in a dual row layout. The connector utilizes a 0.039-inch (1.00mm) pitch to ensure precise alignment and signal integrity. It is constructed with copper alloy contacts that are gold-plated to provide reliable electrical conductivity and corrosion resistance. The housing is black, made from thermoplastic material rated for UL94 V-0 flammability. The unit supports through-hole mounting with solder termination, utilizing a staggered pin arrangement to facilitate dense board integration.

Edgeboard Connectors Feature Summary

• Dual row female configuration optimized for PCI Express standard compliance
• Gold-plated copper alloy contacts ensure stable signal transmission
• Through-hole mounting with staggered solder termination for secure board attachment
• Integrated board guide and locking ramp mechanisms for precise insertion

Edgeboard Connectors Applications

• PCI Express expansion cards and add-in boards
• High-performance computing motherboards
• Industrial control systems requiring PCIe interfaces
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and insulation material ratings against the official datasheet before finalizing procurement decisions. Ensure that the selected variant matches the required staggered termination style and mounting orientation. Confirm compatibility with existing PCB footprint designs and assembly tooling requirements to prevent integration issues during manufacturing.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row female PCI Express interface with a 0.039-inch pitch is required. Consider the gold-plated contact finish for environments demanding high reliability and low contact resistance. Evaluate the through-hole mounting profile against available board space and mechanical stress constraints. Verify that the UL94 V-0 rating meets the safety standards applicable to the target electronic enclosure.

Edgeboard Connectors Part Context

This component belongs to the PCI Express interconnect family manufactured by TE Connectivity AMP Connectors. It serves as a critical interface between peripheral cards and system backplanes or motherboards. The design adheres to industry-standard dimensions and electrical characteristics defined for PCIe slots, ensuring interoperability with compliant hardware components across various computing platforms.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Users must consult official TE Connectivity resources or authorized distributors for verified equivalent parts that match the 64-position dual-row specification and 0.039-inch pitch requirements.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are made from copper alloy and feature a gold plating finish.

Does this connector support surface mount technology?

No, this component is designed for through-hole mounting with solder termination.

What is the pitch dimension of the connector pins?

The pitch is 0.039 inches, which is equivalent to 1.00 millimeter.
