2-2340324-1

Edgeboard Connectors Overview

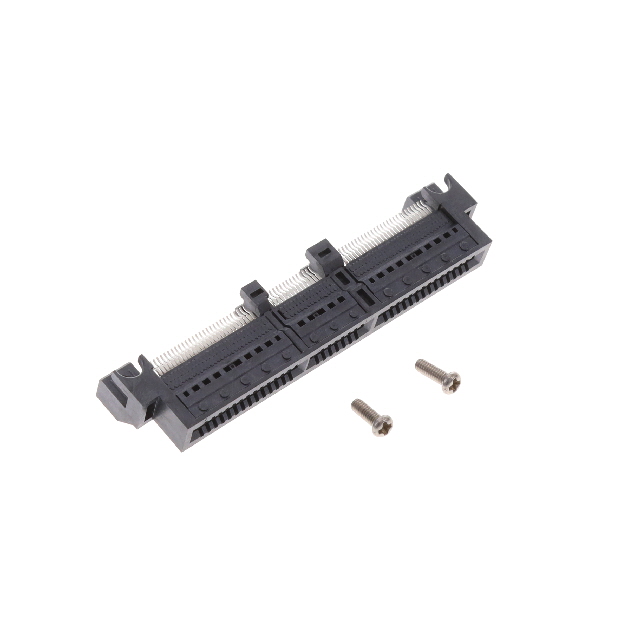

The TE Connectivity AMP Connectors part number 2-2340324-1 is a dual-edge female connector designed for edgeboard applications. It features 140 positions with a contact pitch of 0.024 inches (0.60mm). The contacts are gold-plated to ensure reliable signal transmission, and the housing is black in color.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration suitable for high-density board-to-board connections
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Compact 0.024-inch pitch design enables efficient space utilization on circuit boards

Edgeboard Connectors Applications

• Edgeboard interconnects in industrial control systems
• High-density signal routing in telecommunications equipment
• Data acquisition modules requiring robust board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging type when placing orders, as these details may vary by supplier. Confirm that the component matches the required 140-position specification and 0.60mm pitch for your application. Ensure compatibility with existing edgeboard designs before procurement.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 0.60mm pitch is required. Consider the gold contact finish for environments where corrosion resistance is critical. Evaluate the 140-position count against your signal density needs to ensure optimal board layout efficiency.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors lineup, which specializes in board-to-board and cable-to-board interconnect solutions. The dual-edge format allows for connection from both sides of a substrate, offering flexibility in system architecture design compared to single-edge alternatives.
