2-2340331-1

Edgeboard Connectors Overview

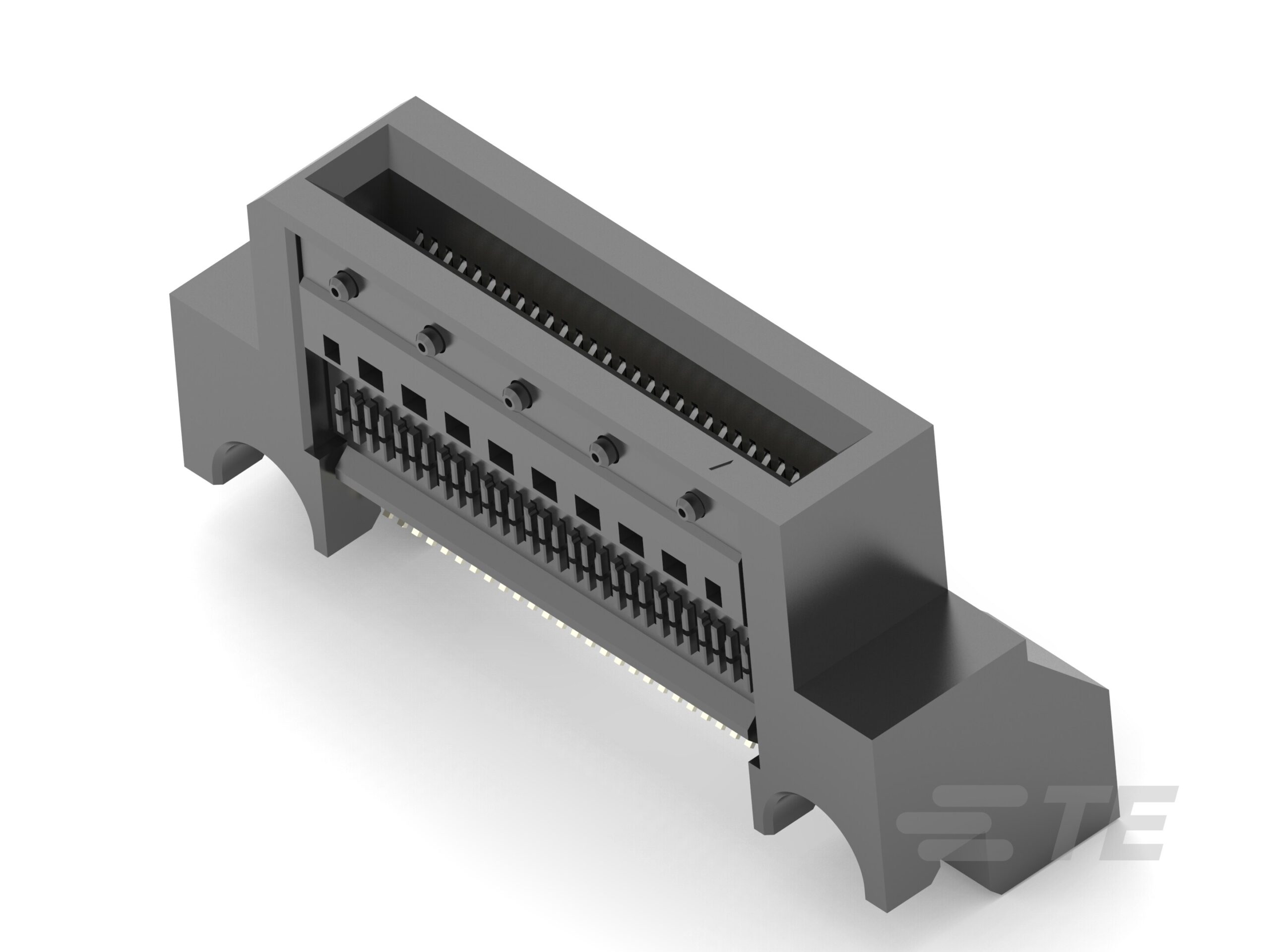

The TE Connectivity AMP Connectors part number 2-2340331-1 is a standard card edge connector assembly designed for high-volume PCB interconnection. It features a dual-edge female contact configuration with 56 positions, providing robust signal and power distribution capabilities. The connector utilizes a silver high-volume (HVM) housing construction to ensure durability in demanding environments. Key electrical specifications include a 0.093-inch (2.36 mm) board thickness compatibility and a 0.024-inch (0.60 mm) contact pitch. This component is engineered for straight PCB mounting, facilitating efficient space utilization on circuit boards while maintaining reliable mechanical retention.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design ensures secure mating with double-sided card edge PCBs.
• Silver-plated contacts provide reliable conductivity and resistance to corrosion.
• High-volume manufacturing housing offers structural integrity for repeated insertions.
• Straight PCB mount orientation supports standard vertical board integration.

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interfaces
• Computing hardware memory modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against the manufacturer's official datasheet to confirm material composition and plating specifications. Ensure that the required board thickness aligns with the 0.093-inch specification to guarantee proper contact engagement. Confirm lead times directly with authorized distributors as production schedules may vary based on current demand levels.

Edgeboard Connectors Selection Notes

Select this component when a high-density 56-position interface is required for double-sided card edge applications. Consider the 0.024-inch pitch constraint for trace routing density. Evaluate the straight mounting style against available panel clearance. Verify environmental ratings if operation exceeds standard industrial temperature ranges.

Edgeboard Connectors Part Context

This connector belongs to the standard card edge series from TE Connectivity, widely used in modular electronics. It complements male header connectors to form complete interconnect systems. The dual-edge design distinguishes it from single-edge variants, offering increased pin count within a compact footprint suitable for complex digital logic applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not explicitly documented in the provided source data. Cross-reference with other TE Connectivity dual-edge assemblies or generic equivalents only after verifying exact dimensional and electrical parameter alignment through official engineering drawings.
