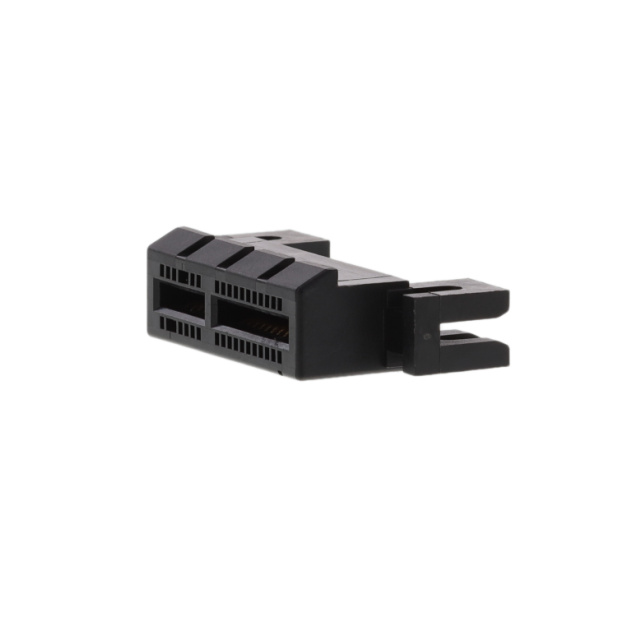

2-2372484-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIEG4,SMT,STRADDLE,36POS,30U". Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-2372484-1
- Description：PCIEG4,SMT,STRADDLE,36POS,30U"
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：11; 7
- Number of Positions：36
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Locking Ramp
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
- Operating Temperature：-40°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2-2372484-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors model 2-2372484-1 is a 36-position female edgeboard connector designed for PCI Express applications. It features a 0.039-inch (1.00mm) pitch and a black housing. The contacts are gold-plated to ensure reliable signal transmission. This component is manufactured by TE Connectivity AMP Connectors.
Edgeboard Connectors Feature Summary
- Designed specifically for PCI Express edgeboard applications
- Features a 0.039 inch (1.00mm) contact pitch
- Utilizes gold-plated contacts for conductivity
Edgeboard Connectors Applications
- PCI Express edgeboard connections
- High-speed data interface modules
- Computer peripheral interconnects
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to confirm current lifecycle status and availability. Ensure that the ordering suffixes match the required packaging and termination specifications. Cross-reference with authorized distributor catalogs to validate authenticity and technical compliance before procurement.
Edgeboard Connectors Selection Notes
Select this component based on its 36-position count and 1.00mm pitch compatibility with target PCB layouts. Confirm that the female connector type aligns with the mating male header requirements. Verify that the gold plating meets the necessary durability standards for the intended application environment.
Edgeboard Connectors Part Context
This connector belongs to the TE Connectivity AMP Connectors portfolio, specializing in high-reliability interconnect solutions. It is categorized under edgeboard connectors, serving critical roles in modern computing architectures where stable high-speed data transfer is essential for system performance and integrity.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources or authorized distributors for verified equivalent components or obsolescence management options.
