2-2372484-4

Edgeboard Connectors Overview

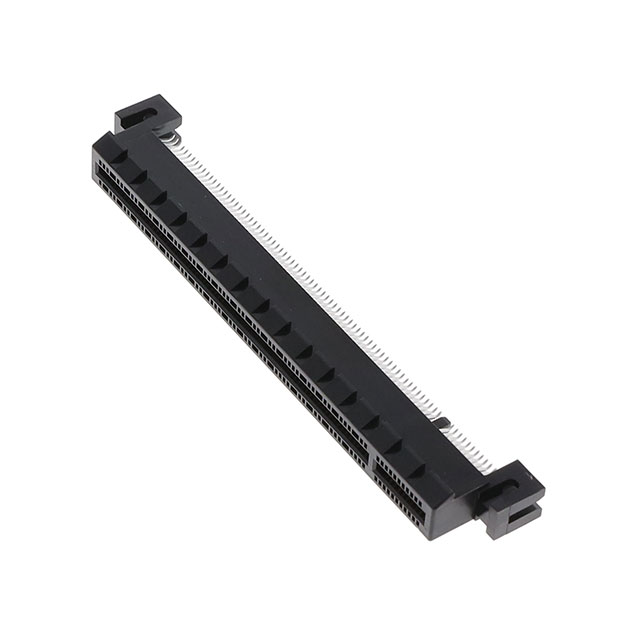

The TE Connectivity AMP Connectors model 2-2372484-4 is a PCI Express Generation 4 board-to-board connector designed for high-speed computing applications. It features a straddle mount surface-mount configuration with 164 positions. The connector utilizes gold-plated contacts and operates within standard industrial temperature ranges, ensuring reliable signal transmission in demanding electronic environments.

Edgeboard Connectors Feature Summary

• PCI Express Generation 4 compliant design for high-speed data transmission
• Straddle mount surface-mount technology for secure PCB integration
• Gold-plated contact surfaces to ensure low resistance and corrosion resistance

Edgeboard Connectors Applications

• High-speed computing systems requiring PCIe Gen 4 interfaces
• Server backplane interconnects
• Advanced networking equipment signal routing

Edgeboard Connectors Procurement Notes

Verify the specific revision level and packaging format against the official datasheet before procurement. Confirm that the straddle mount footprint matches the target PCB layout. Ensure compatibility with associated mating connectors within the PCIe Gen 4 ecosystem to maintain signal integrity standards.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-density interconnect solution is required for next-generation computing architectures. The straddle mount style provides mechanical stability suitable for heavy card applications. Evaluate thermal management requirements alongside the connector's specifications to ensure long-term reliability in enclosed system designs.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio specializing in edgeboard and board-to-board solutions. It supports the evolution of interface standards by providing physical layer connectivity for advanced peripheral component interconnect technologies used in modern infrastructure hardware.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and mechanical dimensions if considering alternative vendors for this specific straddle mount configuration.
