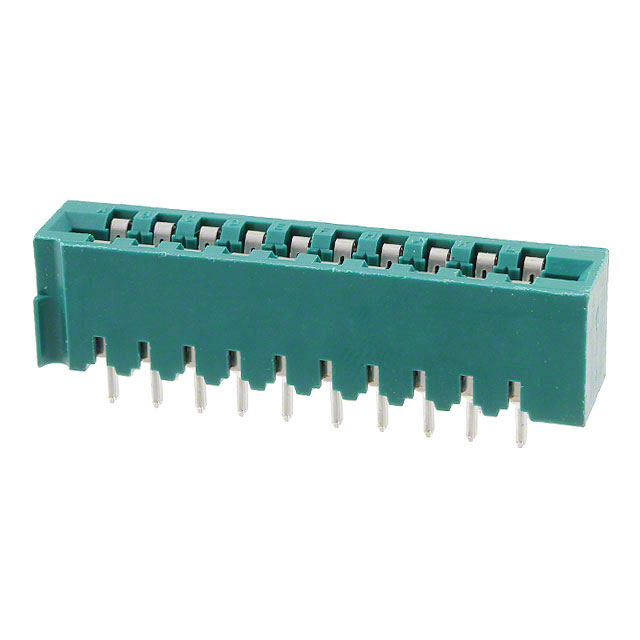

2-530666-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2-530666-2
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.055" ~ 0.070" (1.40mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Green
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 2-530666-2
Edgeboard Connectors Overview
The 2-530666-2 is a card edge connector manufactured by TE Connectivity AMP Connectors. It is classified as an edgeboard connector designed for high-density applications. The component features a dual female contact configuration with twenty positions, facilitating robust electrical interconnections between circuit boards and backplanes.
Edgeboard Connectors Feature Summary
- Dual female contact configuration ensures reliable signal transmission across multiple channels
- Designed specifically for edgeboard applications to support high-density mounting requirements
Edgeboard Connectors Applications
- High-density electronic assemblies
- Backplane interconnection systems
- Edgeboard mounting configurations
Edgeboard Connectors Procurement Notes
Verify the exact datasheet specifications against the manufacturer's official documentation before integration. Confirm that the dual female contact type aligns with the target PCB design requirements. Ensure compatibility with standard edgeboard thicknesses to maintain mechanical stability and electrical performance during operation.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided connection interface is required for twenty-position layouts. Evaluate the mechanical fit within the designated enclosure space. Assess the thermal environment to ensure the connector materials remain within their operational limits under expected load conditions.
Edgeboard Connectors Part Context
This part belongs to the broader category of card edge connectors produced by TE Connectivity. These components are essential for establishing secure connections in modular electronic systems. The specific model provides a standardized solution for connecting peripheral cards to main system boards.
Edgeboard Connectors Replacement Considerations
Consult the official datasheet for compatible mating parts or direct substitutes. Verify pinout compatibility and mechanical dimensions before swapping components to prevent assembly issues.
