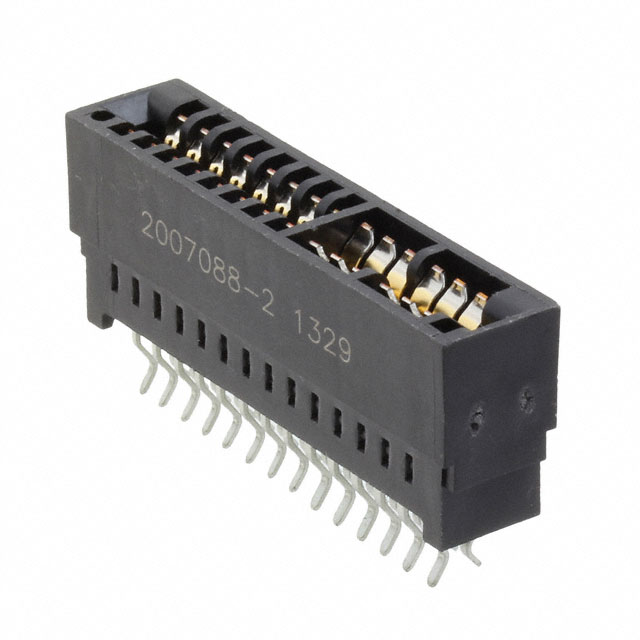

2007088-2

$5.45

Description：CONN EDGE DUAL FML 20POS 0.100
Series：Standard Edge II
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:a99f79cfe5c5 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2007088-2 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FML 20POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2007088-2

Description：CONN EDGE DUAL FML 20POS 0.100
Series：Standard Edge II
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：20 (16 + 4 Power)
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 2007088-2

2007088-2

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2007088-2 is a dual-edge female card edge connector assembly belonging to the Standard Edge Card (SEC) II Power series. It features 20 positions with a 0.100-inch (2.54mm) centerline, designed for secure PCB insertion. The component accepts cards with thicknesses ranging from 0.054 inches to 0.070 inches (1.37mm to 1.78mm). Constructed for high-power applications, it ensures reliable electrical contact through precise mechanical engagement.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for robust board-to-board connectivity
Designed specifically for SEC II Power standard applications
Accommodates specific PCB thickness tolerances for stable mounting

Edgeboard Connectors Applications

High-power industrial control systems
Telecommunications infrastructure equipment
Automotive electronic modules requiring secure power connections

Edgeboard Connectors Procurement Notes

Verify the exact physical dimensions and PCB thickness compatibility before ordering, as this connector requires strict tolerance adherence. Confirm that the target printed circuit board falls within the specified 0.054 to 0.070 inch range to ensure proper mechanical fit and electrical performance. Cross-reference official datasheets for any recent product change notices or reliability documentation updates.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is required for power distribution in compact assemblies. Ensure the design accommodates the 0.100-inch pitch and supports the necessary current ratings associated with the SEC II Power series. Validate that the application environment matches the connector's environmental specifications and mechanical locking requirements.

Edgeboard Connectors Part Context

This connector belongs to the Standard Edge Card (SEC) II Power family, engineered for demanding power transmission tasks. It provides a secure mating solution for double-sided edge cards, distinguishing itself from single-edge variants by offering enhanced stability and contact density suitable for heavy-duty industrial and telecommunications environments.
