2199230-8

Edgeboard Connectors Overview

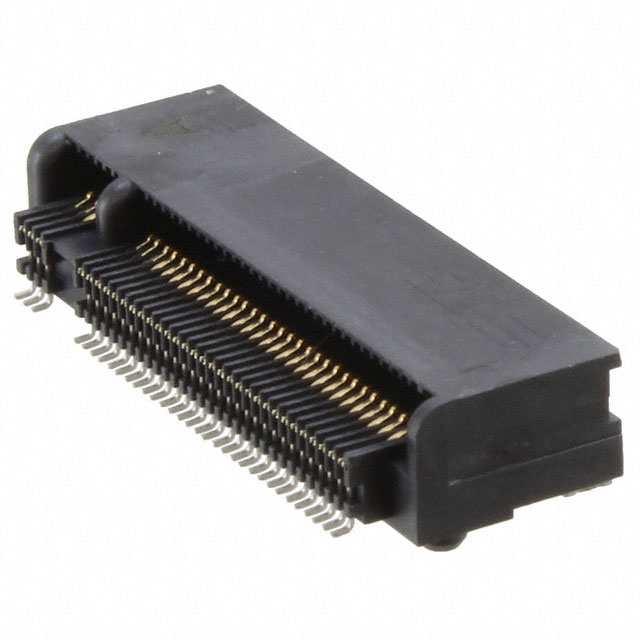

The TE Connectivity AMP Connectors part number 2199230-8 is a card edge connector designed for M.2 (NGFF) mini cards. It features a dual-side configuration with 67 positions and a 0.50mm pitch. The connector utilizes gold-plated contacts made from copper alloy, ensuring reliable electrical performance. It is rated for 50V and supports a current of 500mA. The housing is constructed from high-temperature thermoplastic material, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-side contact configuration for enhanced signal integrity
• Gold-plated copper alloy contacts for corrosion resistance
• Zero insertion force design compatible with M.2 NGFF standards
• High-temperature thermoplastic housing for thermal stability

Edgeboard Connectors Applications

• M.2 NGFF mini card edge connections
• Solid-state drive interfaces
• Wireless communication modules
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation to ensure compatibility with required board thickness and keying configurations. Confirm RoHS compliance status as per the latest manufacturer documentation. Check for any recent packing specification changes or manufacturing location updates that may affect supply chain logistics. Ensure the ordering quantity aligns with standard reel packaging requirements.

Edgeboard Connectors Selection Notes

Select this component when a robust, dual-sided connection is required for M.2 form factor applications. Consider the 0.50mm pitch constraint and the need for gold plating in high-cycle environments. Evaluate the operating temperature range against system thermal profiles. Ensure mechanical clearance allows for the specified board height and mounting orientation.

Edgeboard Connectors Part Context

This connector belongs to the M.2 NGFF series, specifically engineered for next-generation form factor cards. It serves as a critical interface between the motherboard and peripheral modules. The design emphasizes reliability and compactness, supporting high-speed data transmission protocols common in modern portable and industrial electronics.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers include 2199230-7 and 2199230-6. Verify mechanical dimensions and electrical ratings before substitution. Ensure the alternative part matches the required keying and board thickness specifications.
