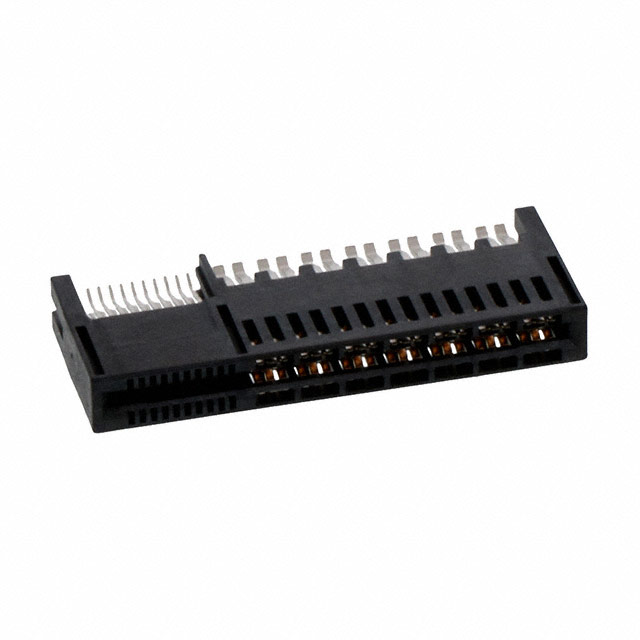

2204798-1

$7.77

Description：CONN EDGE DUAL FMALE 34POS GOLD
Series：Power
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:956959835e69 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2204798-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FMALE 34POS GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2204798-1

Description：CONN EDGE DUAL FMALE 34POS GOLD
Series：Power
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7; 10
Number of Positions：34 (20 + 14 Power)
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：-
Read Out：Dual
Features：-
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：-
Flange Feature：-
Operating Temperature：-55°C ~ 125°C

Edgeboard Connectors datasheet and documents for 2204798-1

2204798-1

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2204798-1 is a dual-edge card edge connector designed for PCB integration. It features a total of 34 positions, comprising 20 signal contacts and 14 power contacts. The device utilizes a 1.27mm pitch for signal lines and supports a card thickness of 1.57mm. The contact plating is specified as gold to ensure reliable electrical performance.

Edgeboard Connectors Feature Summary

Dual-edge configuration providing separate signal and power contact arrays
Gold-plated contacts to maintain low resistance and reliability
Engineered for low temperature rise and reduced power loss during operation

Edgeboard Connectors Applications

High-density electronic system interconnections
Industrial equipment signal routing
Consumer electronics board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count and plating specifications. Ensure compatibility with the target printed circuit board stack-up dimensions. Confirm that the selected variant meets all required environmental and regulatory standards for the intended deployment environment.

Edgeboard Connectors Selection Notes

Select this component when a high-contact-count solution is required within a compact footprint. The dual-edge design allows for efficient separation of signal integrity and power delivery paths. Verify that the 1.57mm card thickness aligns with the mechanical constraints of the host assembly.

Edgeboard Connectors Part Context

This component belongs to the POWER series of card edge connectors manufactured by TE Connectivity AMP Connectors. The series is characterized by robust construction suitable for demanding applications requiring stable electrical transmission across multiple channels in space-constrained environments.
