2212112-1

Edgeboard Connectors Overview

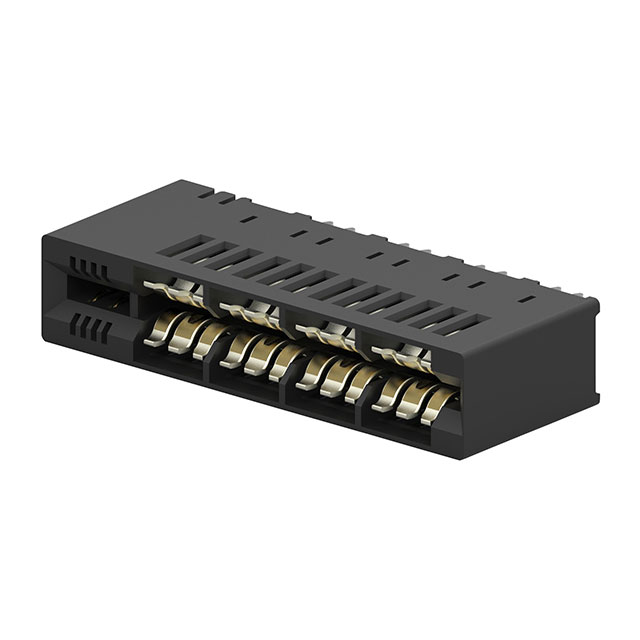

The TE Connectivity AMP Connectors 2212112-1 is a dual card edge connector designed for high-density applications. It utilizes press-fit termination technology to secure the component directly onto printed circuit boards without soldering. The connector features gold-plated copper alloy contacts to ensure reliable signal transmission and low contact resistance. Constructed with a thermoplastic body, it supports robust mechanical stability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual card edge connector design for enhanced signal density
• Press-fit termination method for board mounting
• Gold-plated copper alloy contacts for conductivity

Edgeboard Connectors Applications

• High-density electronic assemblies
• Industrial control systems
• Telecommunications infrastructure

Edgeboard Connectors Procurement Notes

Verify the specific press-fit pin configuration and mating interface requirements against your PCB layout before ordering. Confirm that the supplier provides genuine TE Connectivity products with traceable documentation. Ensure the procurement channel offers valid warranty coverage for industrial-grade components.

Edgeboard Connectors Selection Notes

Select this model when space constraints require high I/O density on a single connector footprint. The press-fit option eliminates thermal stress associated with wave soldering. Evaluate the thermoplastic housing material compatibility with your assembly process temperatures.

Edgeboard Connectors Part Context

This component belongs to the next-generation SEC-II power card edge product family. It represents an upgrade over previous generations by delivering superior current handling capabilities. The design focuses on maximizing signal integrity within compact form factors.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for cross-reference data.
