2214913-1

Edgeboard Connectors Overview

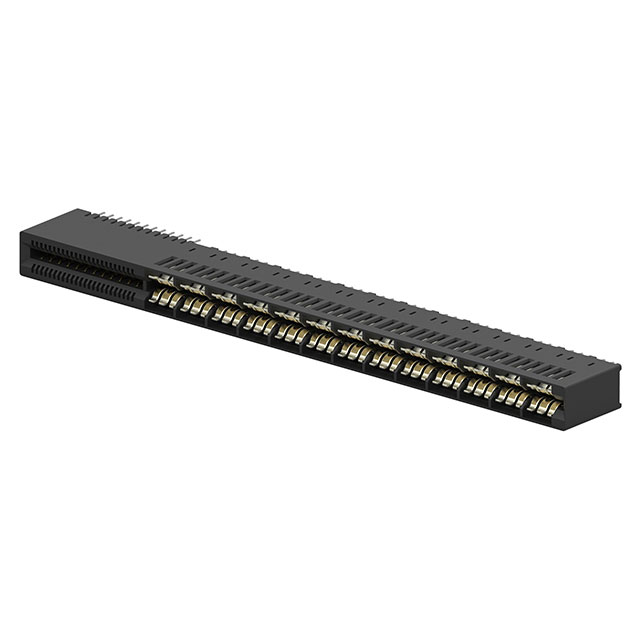

The TE Connectivity AMP Connectors part number 2214913-1 is a dual-side card edge connector designed for high-density signal and power applications. It features 74 positions with gold-plated contacts to ensure reliable electrical performance. The component supports a standard card thickness of 1.4mm, accommodating both signal and power lines within a single compact housing. This connector represents a next-generation solution intended to replace older SEC-II power card edge products, offering improved current handling capabilities and higher signal density for modern electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-side architecture supporting simultaneous signal and power transmission
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Optimized for superior current and signal density compared to legacy SEC-II designs

Edgeboard Connectors Applications

• High-density electronic assemblies requiring combined signal and power routing
• Replacement upgrades for existing SEC-II power card edge systems
• Industrial control modules needing robust dual-sided connectivity

Edgeboard Connectors Procurement Notes

Verify the specific variant suffix (e.g., -1, -4, -5) against your design requirements, as these numbers indicate different contact configurations such as 12 power and 24 signal contacts or full 74-position layouts. Confirm that the mating card thickness matches the 1.4mm specification. Ensure compatibility with the intended PCB mounting style and check for any specific environmental compliance documentation required for your region.

Edgeboard Connectors Selection Notes

Select this component when upgrading from SEC-II series connectors to achieve better performance in current carrying capacity and signal integrity. Evaluate the total position count needed; choose variants with mixed power/signal contacts if space is limited, or full-signal layouts if power distribution is handled separately. Verify that the dual-side configuration aligns with your board layout constraints and that the gold plating meets your long-term reliability standards.

Edgeboard Connectors Part Context

This connector belongs to TE Connectivity's advanced card edge series, engineered to succeed previous generations like the SEC-II line. It addresses the growing demand for compact, high-performance interconnects in industrial and commercial electronics. The product line emphasizes durability and electrical stability, serving as a critical interface between circuit boards and backplanes or mating cables in demanding operational environments.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. When replacing older SEC-II components, verify mechanical footprint compatibility and pinout definitions carefully, as internal contact arrangements may differ between legacy and next-generation designs.
