Edgeboard Connectors Overview

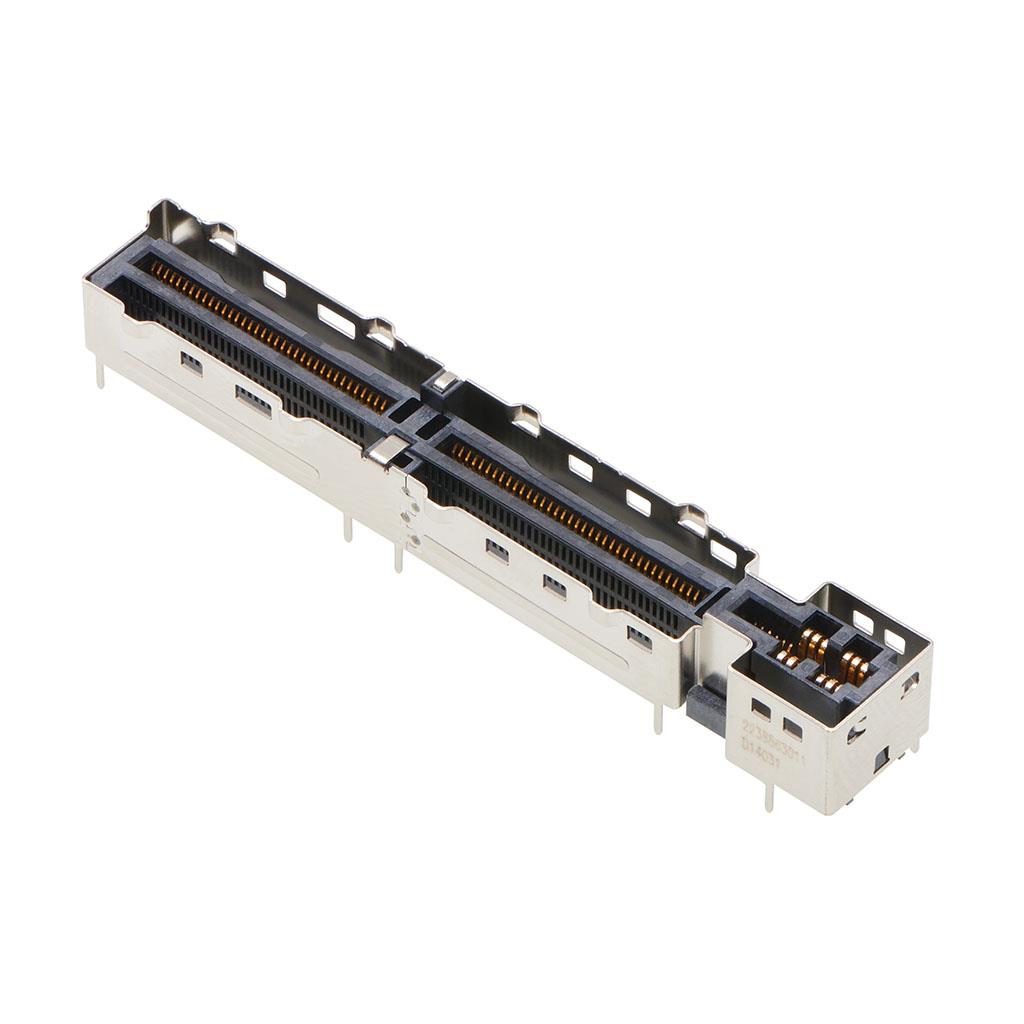

The Molex 2238863011 is a Multi-Trak high-speed I/O connector designed for PCIe Gen 5 applications. It features 148 circuits and utilizes a 2.20mm shell leg length. The component employs surface mount termination with gold-plated copper alloy contacts, ensuring reliable signal integrity. This edgeboard connector supports pick-and-place assembly and includes a dust cap for protection during manufacturing.

Edgeboard Connectors Feature Summary

• Supports PCIe Gen 5 high-speed data transmission standards
• Designed for surface mount installation on edgeboards
• Includes integrated dust cap for component protection

Edgeboard Connectors Applications

• PCI Express Gen 5 edgeboard connections
• High-density server backplane interfaces
• Advanced computing system interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of the pick-and-place dust cap, as this feature is critical for automated assembly processes. Ensure compatibility with the required PCB stack-up height and mating connector specifications before procurement. Cross-reference the official datasheet for precise mechanical dimensions and soldering profile requirements to guarantee successful integration.

Edgeboard Connectors Selection Notes

Select this connector when designing systems requiring PCIe Gen 5 performance levels. The 148-position configuration suits complex I/O requirements. Verify that the surface mount footprint aligns with the target PCB design. Consider the thermal management capabilities inherent in the gold-plated contact finish for sustained high-speed operation under load conditions.

Edgeboard Connectors Part Context

This part belongs to the Molex Multi-Trak series, which focuses on high-density, high-speed interconnect solutions. The series is engineered for demanding applications where signal integrity and reliability are paramount. The 223886 series specifically targets next-generation computing architectures requiring increased bandwidth and reduced latency compared to previous generations.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
