Edgeboard Connectors Overview

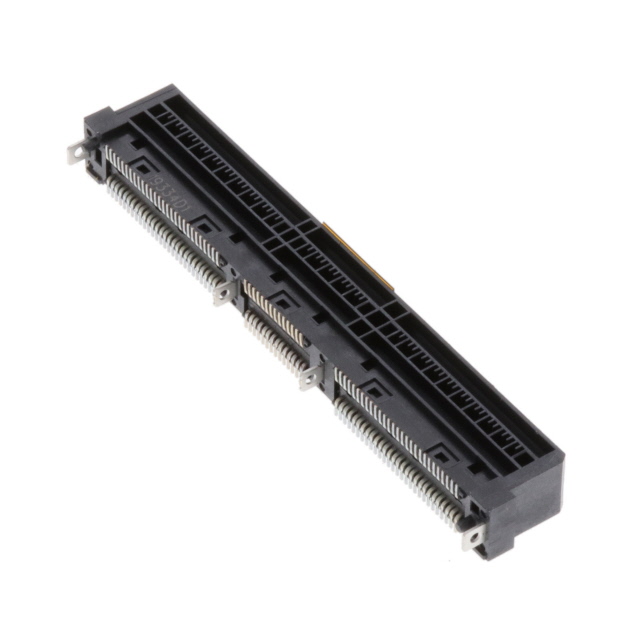

The TE Connectivity AMP Connectors part number 2327677-2 is a standard card edge connector receptacle assembly. It features 140 positions arranged in a dual-row configuration with a 0.60 mm (0.024 inch) pitch. The housing is black, constructed from liquid crystal polymer (LCP), and designed for surface mount installation. Contacts are made of copper alloy with gold plating. The component operates within a temperature range of -55°C to +85°C and supports pick-and-place assembly processes.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board-to-board or daughtercard connections
• Liquid crystal polymer housing provides structural stability and thermal resistance
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Integrated board guide and solder retention features facilitate automated surface mount assembly

Edgeboard Connectors Applications

• High-density electronic module interconnections
• Daughtercard attachment systems
• Industrial control unit backplanes
• Telecommunications infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation when ordering, as variations exist within the 2327677 series. Confirm that the required quantity aligns with the manufacturer's standard packaging specifications. Ensure compatibility with existing surface mount reflow profiles. Cross-reference the exact part number against current distributor catalogs to confirm availability status and lifecycle stage before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, low-pitch vertical interface is required. The dual-edge configuration maximizes connection density within constrained board areas. Verify that the operating temperature range meets environmental requirements. Ensure the surface mount footprint matches the design layout. Consider the mechanical stability provided by the integrated guides during mating cycles.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series of card edge connectors. The series is characterized by fine pitch dimensions and robust surface mount construction. It serves as a critical interconnect solution for applications demanding high reliability and compact form factors. The design philosophy emphasizes automated assembly efficiency and long-term mechanical durability.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 140-position, 0.60mm pitch dual-edge receptacles from compatible manufacturers. Verify pinout alignment and mechanical dimensions before substitution. Alternative TE Connectivity variants may offer different termination styles or housing materials.
