2328461-1

Edgeboard Connectors Overview

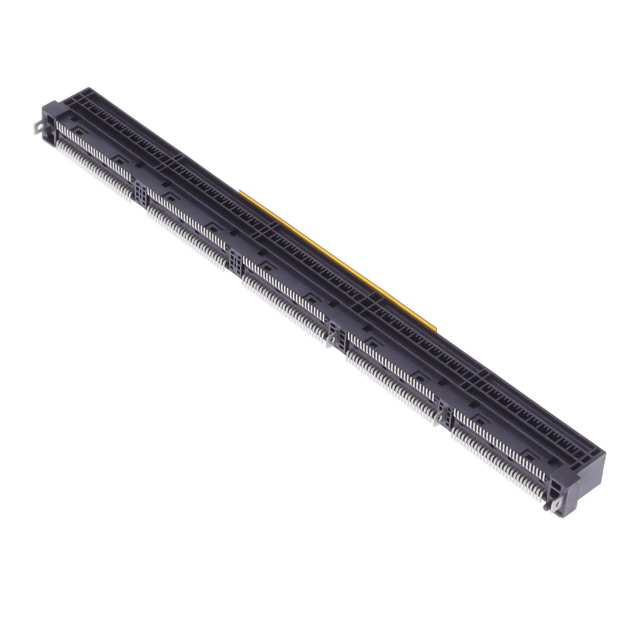

The 2328461-1 is a 280-position female connector assembly from the Sliver series, designed for vertical PCB edge card mounting. It features a dual-edge configuration with a 0.024-inch (0.60mm) pitch and gold contact plating. The component supports Gen-Z standard applications as an internal I/O connector.

Edgeboard Connectors Feature Summary

• Dual-edge design for high-density signal transmission
• Vertical mounting orientation for compact integration
• Gold-plated contacts for reliable conductivity

Edgeboard Connectors Applications

• Gen-Z standard internal I/O connections
• Vertical PCB edge card mounting
• High-speed data interface systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix or revision level against the manufacturer's latest documentation to ensure compatibility with current Gen-Z specifications. Confirm that the dual-edge termination type matches the target PCB layout requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count, dual-edge connector is required for vertical mounting in space-constrained environments. Ensure the 0.60mm pitch aligns with the system's trace width capabilities and that the gold plating meets the necessary corrosion resistance standards for the operating environment.

Edgeboard Connectors Part Context

This component belongs to the Sliver series of connectors, which are engineered for high-performance computing applications. The series focuses on providing robust interconnect solutions for next-generation architectures requiring significant bandwidth and density within limited form factors.

Edgeboard Connectors Replacement Considerations

The part number 1-2328461-1 is identified as a related variant within the same product family. Verify mechanical and electrical equivalence before substitution.
