2331813-1

Edgeboard Connectors Overview

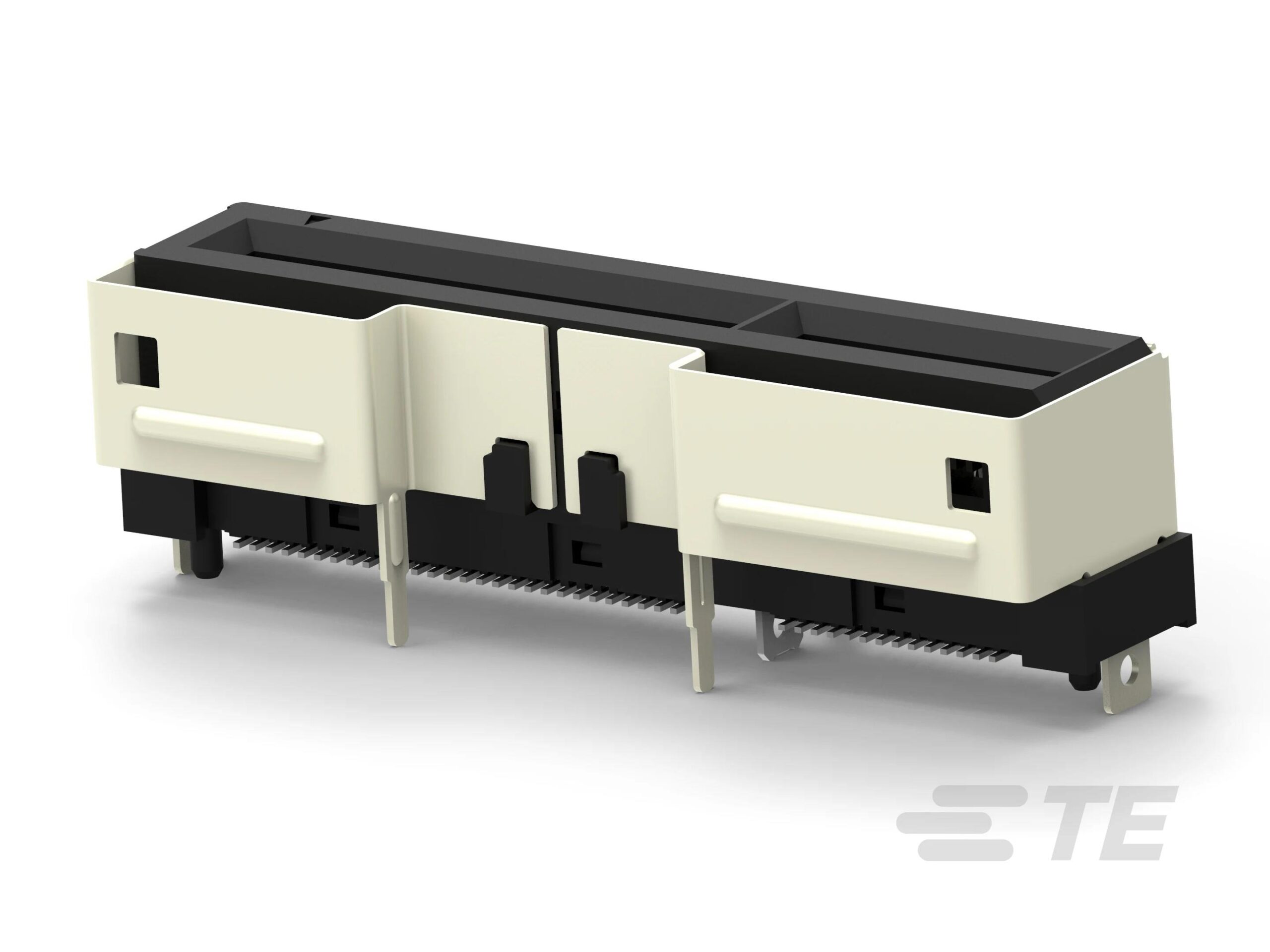

The TE Connectivity AMP Connectors part number 2331813-1 is a cable plug assembly designed for internal I/O applications. It belongs to the Sliver series, which complies with the SFF-TA-1002 standard. The connector features 84 positions arranged in a dual-edge configuration. It utilizes a surface mount installation type and employs a solder termination method. The contact pitch is specified as 0.60mm (0.024 inches). The housing material is black, and the contacts are gold-plated.

Edgeboard Connectors Feature Summary

• Complies with SFF-TA-1002 standard for internal I/O connectivity
• Dual-edge design accommodating 84 signal positions
• Surface mount construction with solder termination
• Gold-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

• Internal input/output interconnects in storage systems
• Solid-state drive mounting interfaces
• High-density data transfer connections within server chassis
• SFF-TA-1002 compliant hardware assemblies

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the manufacturer's part number 2331813-1 exactly. Confirm compliance with the SFF-TA-1002 specification if required by the system design. Ensure the procurement channel provides original TE Connectivity products to guarantee authenticity and adherence to quality standards. Check for any recent product change notices or availability updates directly from the supplier before finalizing orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density, dual-edge connection is required for internal storage devices. The surface mount format is suitable for automated assembly processes on printed circuit boards. Consider the 0.60mm pitch and 84-position capacity when designing board layouts. Verify that the mating connector aligns with the SFF-TA-1002 mechanical and electrical specifications to ensure proper fit and function.

Edgeboard Connectors Part Context

This component is part of the Sliver series by TE Connectivity, specifically engineered for small form-factor storage applications. The series focuses on providing robust, high-speed data connections within confined spaces typical of modern storage arrays. The 2331813-1 variant serves as a cable plug assembly, facilitating vertical connections between cables and board-mounted receptacles.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: 2331813-3.
