2331814-1

Edgeboard Connectors Overview

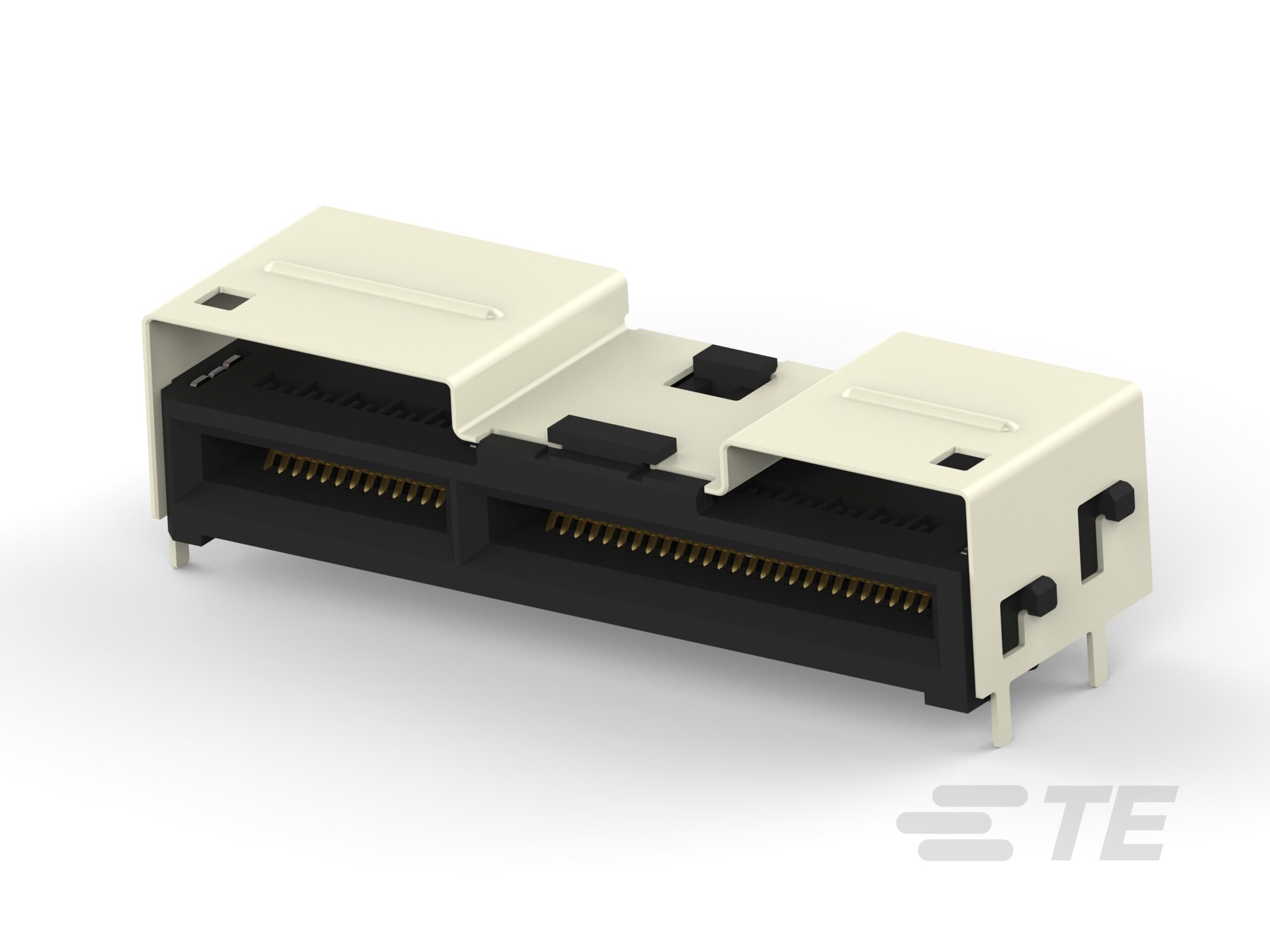

The TE Connectivity AMP Connectors part number 2331814-1 is a standard edge connector from the Sliver 2.0 series, designed for high-density internal cable interconnect applications. It features a dual-row configuration with 84 positions and a precise 0.6 mm (0.024 inch) contact pitch. The connector utilizes gold-plated copper alloy contacts housed in a black liquid crystal polymer (LCP) body. Rated for 1.1 A current, it operates within a temperature range of -55°C to +85°C. This right-angle receptacle is engineered for surface-mount assembly, offering a compact profile suitable for space-constrained electronic designs requiring reliable signal transmission.

Edgeboard Connectors Feature Summary

• High-density interconnect capability enabled by a 0.6 mm pitch, allowing for increased position count within limited board areas.
• Robust mechanical stability provided by a rigid LCP housing and mounting pegs for secure surface-mount installation.
• Corrosion-resistant electrical performance ensured by gold-plated copper alloy contacts suitable for repeated mating cycles.

Edgeboard Connectors Applications

• Internal connections within consumer electronics enclosures
• Signal transmission in compact industrial control modules
• Interfacing between circuit boards in space-constrained automotive systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact termination style and packaging format required for your assembly line. Confirm that the selected variant matches the intended right-angle orientation and pin count specifications. Ensure compatibility with existing PCB footprint designs before finalizing procurement orders to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count solution is required within strict vertical or horizontal spatial limits. The 0.6 mm pitch offers superior density compared to traditional 1.0 mm or 2.54 mm connectors. Consider the LCP material properties for thermal resistance during soldering processes and ensure the 1.1 A rating meets the circuit's current requirements.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 family of edge connectors, which are characterized by their low-profile design and high reliability. The series supports various row counts and termination options, catering to diverse internal connectivity needs across multiple industries while maintaining consistent mechanical and electrical standards.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 84-position count, 0.6 mm pitch, and dual-row configuration. Verify that alternative components support the same operating temperature range and current rating. Cross-reference PCB footprints to ensure mechanical compatibility without redesigning the host board.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The maximum operating temperature is +85°C, with a minimum limit of -55°C.

Does this connector feature a right-angle orientation?

Yes, the 2331814-1 is designed as a right-angle receptacle for surface-mount installation.
