2331814-4

Edgeboard Connectors Overview

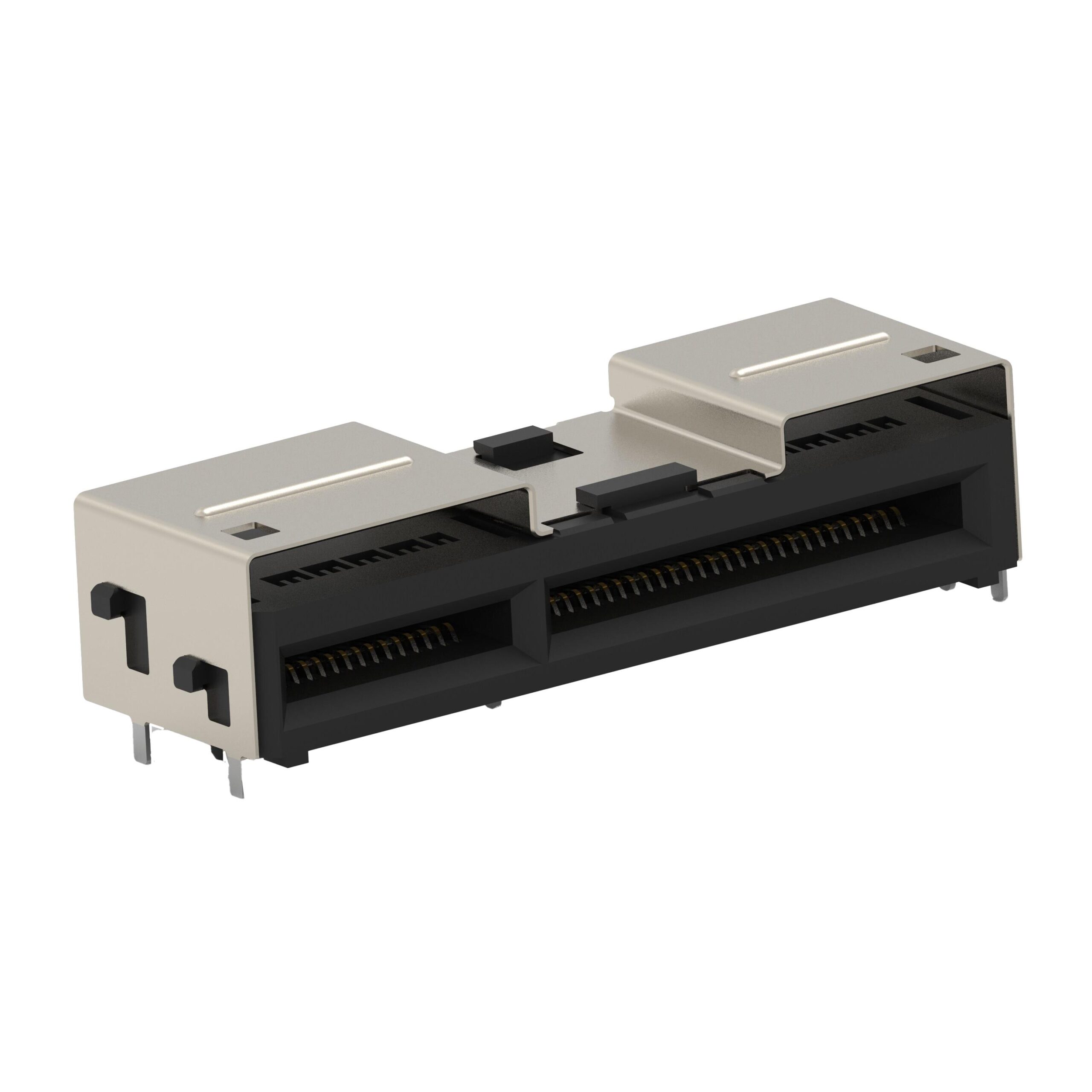

The TE Connectivity AMP Connectors part number 2331814-4 is a cable receptacle assembly designed for surface mount, right-angle installation. It features 84 positions with a dual readout and a pitch of 0.6 mm (0.024 inches). The connector utilizes gold-plated contacts made from copper alloy to ensure reliable signal transmission. Key mechanical features include board guides, pick-and-place compatibility, and solder retention capabilities. The housing material is liquid crystal polymer (LCP), providing structural integrity and thermal stability.

Edgeboard Connectors Feature Summary

• Surface mount right-angle design with integrated board guides
• Gold-plated copper alloy contacts for corrosion resistance
• Pick-and-place compatible construction for automated assembly
• Solder retention features to secure connections during processing

Edgeboard Connectors Applications

• Home appliance circuit boards
• Washing machine control panels
• Consumer electronics interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest documentation to ensure compatibility with current production requirements. Confirm that the surface mount footprint matches the target PCB design. Check for any obsolescence notices or lifecycle status updates directly from TE Connectivity before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a high-density, right-angle surface mount connection is required for home appliance applications. Ensure the PCB layout supports the 0.6 mm pitch and accommodates the 84-position width. Verify that the LCP insulation material meets the thermal profile requirements of the reflow soldering process used in the manufacturing line.

Edgeboard Connectors Part Context

This part belongs to the standard card edge connector series manufactured by TE Connectivity AMP Connectors. It is specifically engineered for robust performance in consumer goods. The 84-position configuration allows for significant I/O density in compact spaces. The right-angle orientation facilitates efficient board stacking or side-entry cable management within enclosed appliance housings.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 84-position, 0.6 mm pitch surface mount connectors if supply constraints exist. Ensure that pinout assignments and mechanical mounting peg locations are identical to avoid PCB redesign. Verify that the contact plating thickness and insulation material ratings meet or exceed the original specifications.
