2331814-6

Edgeboard Connectors Overview

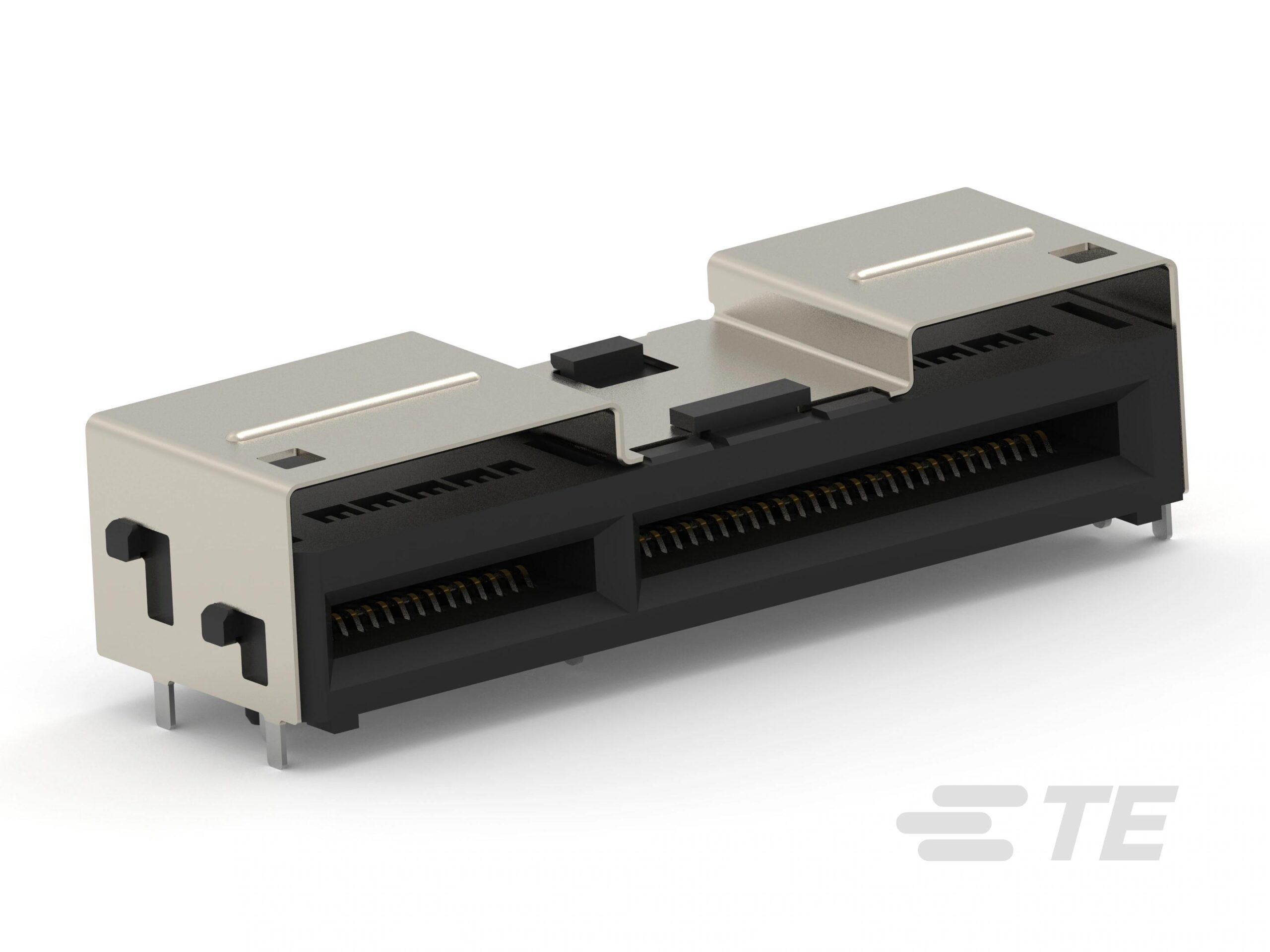

The TE Connectivity AMP Connectors part number 2331814-6 is a standard card edge connector assembly belonging to the Sliver 2.0 series. It features an 84-position dual-edge configuration with a 0.60 mm (0.024 inch) pitch. The connector utilizes gold-plated copper alloy contacts housed in black liquid crystal polymer (LCP). Designed for right-angle mounting via mounting pegs, it supports a maximum current rating of 1.1 A and operates within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for high-density signal transmission
• Right-angle cable receptacle assembly design for space-constrained applications
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Liquid crystal polymer housing provides thermal stability and mechanical strength

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control modules requiring robust signal routing
• Telecommunications equipment backplanes
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, orientation, and termination style. Ensure compatibility with the mating card edge thickness and board layout requirements. Cross-reference the RoHS compliance status and material declarations with the latest datasheet before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, 84-position card edge interface is required. Confirm that the 0.60 mm pitch aligns with the PCB trace spacing. Verify that the 1.1 A current rating meets the circuit load requirements. Ensure the mounting peg installation style fits the chassis or board constraints.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 series, designed for compact, high-reliability connections. It serves as a cable receptacle assembly, distinct from through-hole headers or surface-mount variants. The series emphasizes durability in demanding environments while maintaining a small form factor suitable for modern electronic packaging.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other TE Connectivity Sliver 2.0 series connectors with matching 84-position counts and 0.60 mm pitch. Verify mechanical dimensions, contact plating, and housing material before substitution. Ensure the replacement maintains the right-angle orientation and mounting peg configuration.
