2332141-1

Edgeboard Connectors Overview

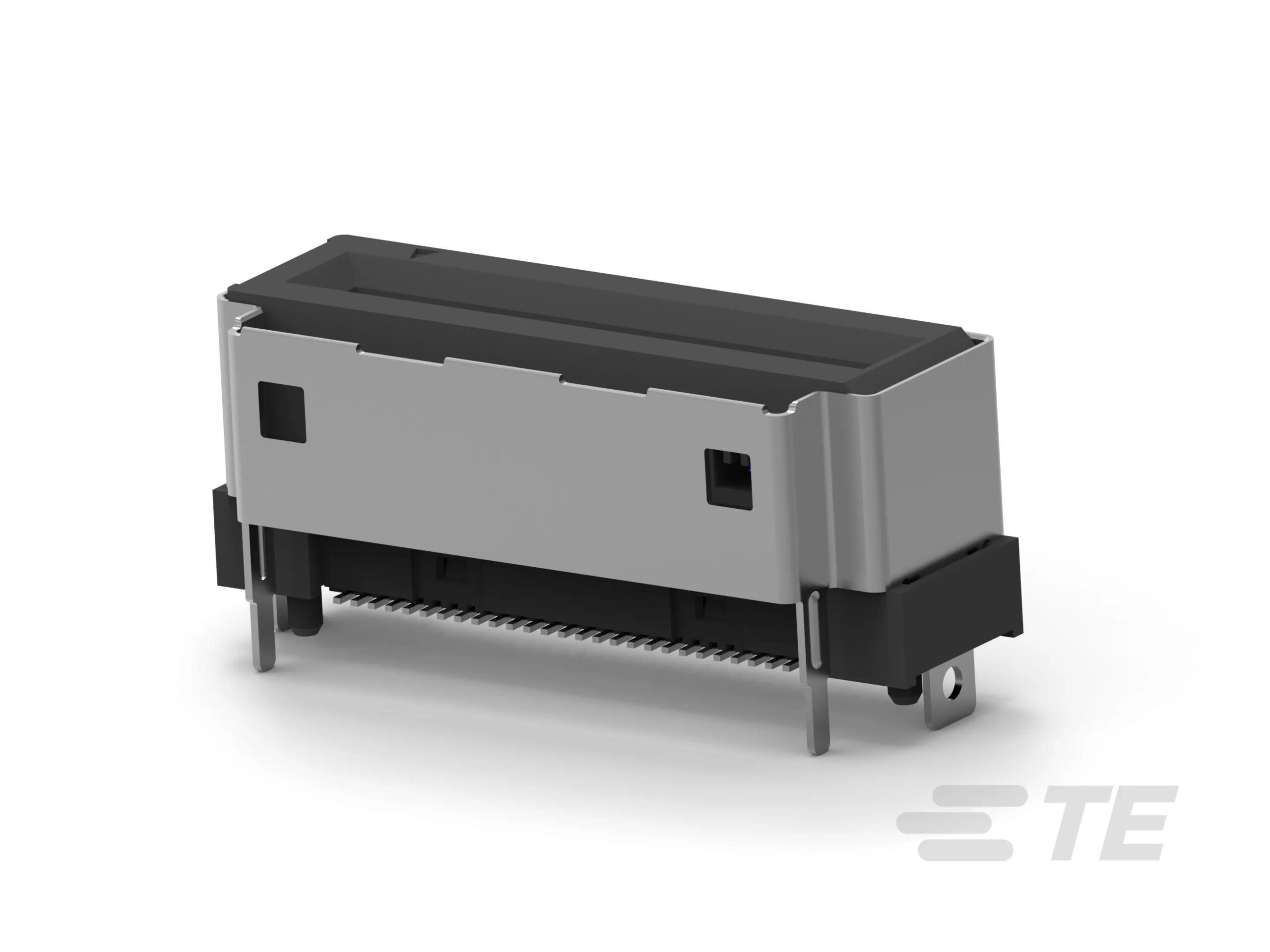

The TE Connectivity AMP Connectors part number 2332141-1 is a dual-edge female card edge connector designed for high-density applications. It features 56 positions arranged in two rows of 28 contacts, with a precise pitch of 0.024 inches (0.60mm). The connector utilizes gold plating on copper alloy contacts to ensure reliable signal transmission and low contact resistance. Constructed with a black liquid crystal polymer (LCP) insulator, it supports surface mount installation via solder termination. The unit is rated for a maximum card thickness of 0.062 inches (1.57mm) and operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration provides high pin density within a compact footprint
• Gold-plated contacts ensure durable performance and stable electrical connections
• Liquid crystal polymer insulation offers thermal stability and mechanical strength
• Surface mount design facilitates automated pick-and-place assembly processes

Edgeboard Connectors Applications

• High-speed data interface modules
• Server backplane interconnects
• Storage area network equipment
• Telecommunications infrastructure boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against the manufacturer's current datasheet to confirm exact plating specifications and packaging options. Ensure that the printed circuit board layout matches the required 0.024-inch pitch and compatible card thickness specifications. Confirm RoHS compliance status aligns with project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for high-density signal routing. The 0.024-inch pitch allows for significant I/O count in constrained spaces. Verify compatibility with standard SMT reflow profiles and ensure the mating card thickness falls within the specified tolerance range for optimal retention.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series, engineered specifically for small form factor applications requiring robust connectivity. It serves as a critical interface element in systems demanding high reliability and consistent signal integrity across multiple data lines.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify dimensional tolerances and electrical characteristics match exactly before substituting.
