2332205-3

Edgeboard Connectors Overview

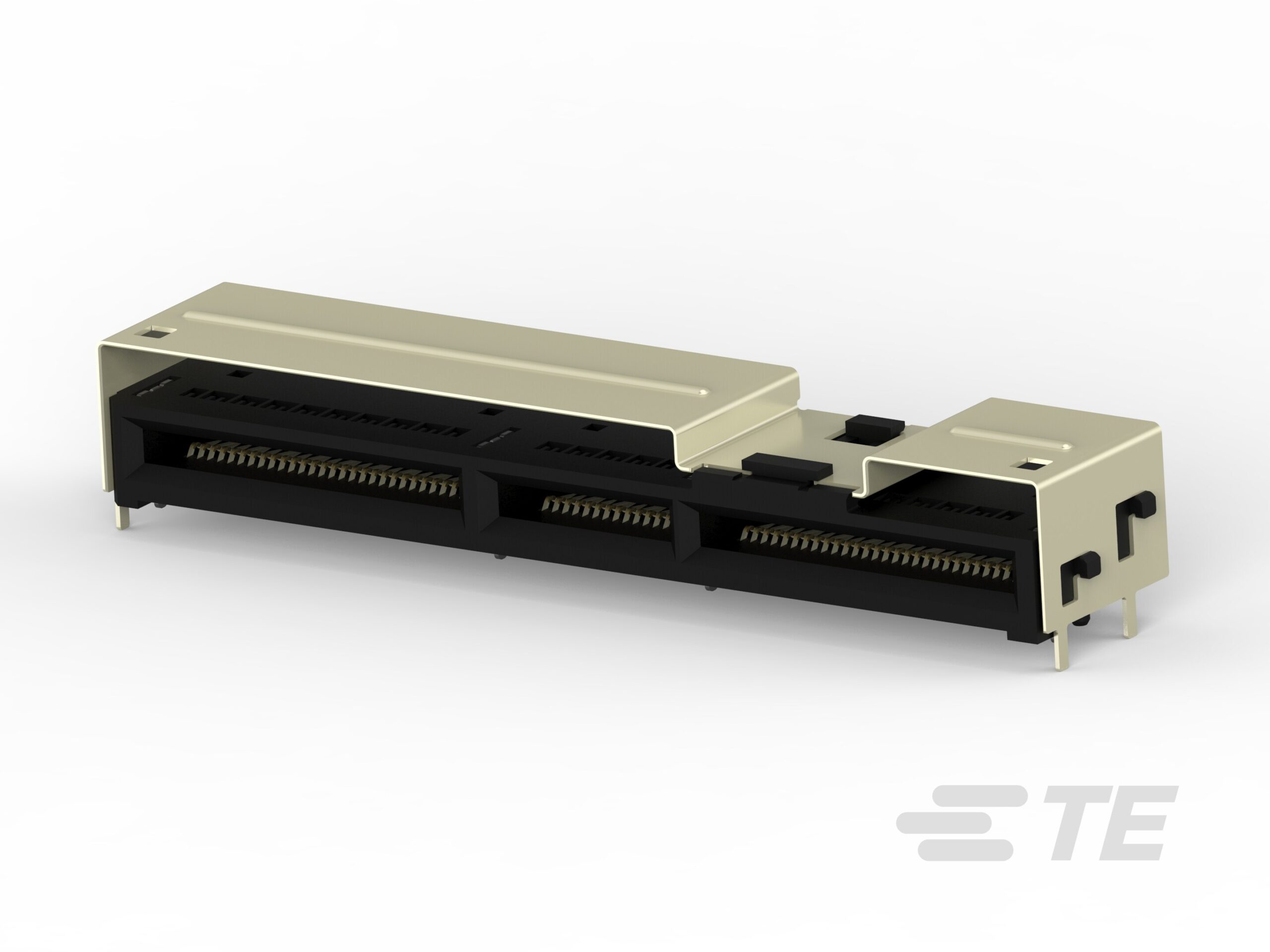

The TE Connectivity AMP Connectors part number 2332205-3 is a standard card edge connector receptacle assembly. It features a right-angle configuration with 140 positions and a 2.0mm pitch. The connector is designed for silver-colored card edges and utilizes surface mount termination. Key material specifications include liquid crystal polymer (LCP) insulation and gold-plated contacts with a thickness of 30.0µin (0.76µm). The unit supports pick-and-place assembly and offers solder retention capabilities.

Edgeboard Connectors Feature Summary

• Right-angle receptacle assembly design for board-to-board connectivity
• Gold-plated contact surfaces ensuring reliable signal transmission
• Liquid crystal polymer insulation providing high thermal stability
• Surface mount termination compatible with automated pick-and-place processes

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Telecommunications equipment backplanes
• Industrial control system modules
• Consumer electronics internal component linking

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with your design requirements. Confirm that the right-angle orientation and 140-position count match your PCB layout constraints. Check for any recent product change notices or obsolescence alerts directly from the manufacturer before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, right-angle card edge interface is required. Ensure the mating card thickness aligns with the connector's mechanical specifications. Consider the surface mount profile and LCP material properties for applications involving elevated operating temperatures or strict space limitations on the printed circuit board.

Edgeboard Connectors Part Context

This component belongs to the standard card edge connector category within the TE Connectivity portfolio. It serves as a female receptacle designed to mate with corresponding male card edge plugs. The 140-position configuration allows for substantial data or power routing in compact form factors, supporting modern high-density electronic packaging needs.
